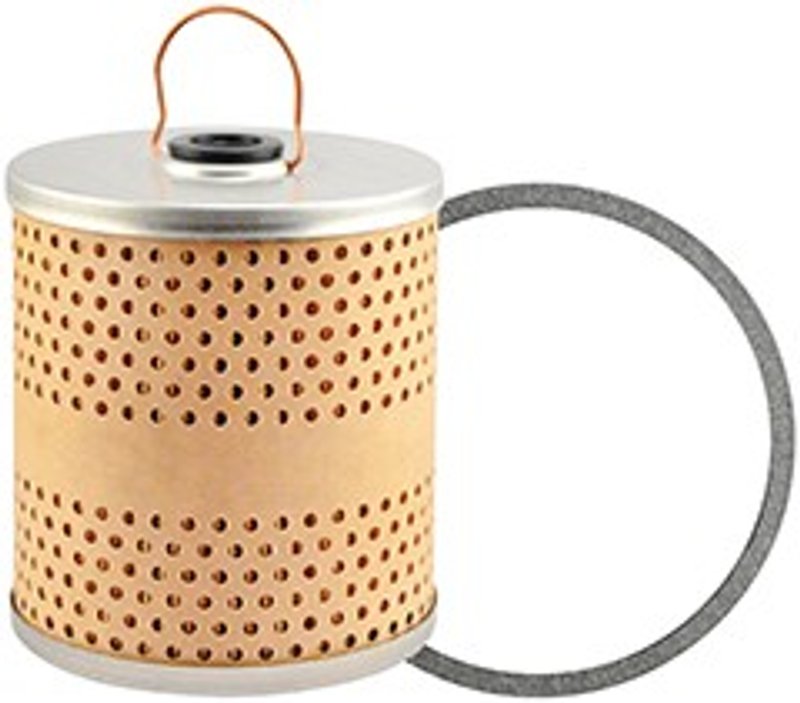

Baldwin P40 Engine Oil Filter
| Brand | Baldwin P40 |
|---|---|
| Fits | "Clark, Galion, Hyster in Fram F3 Series Housings; Allis Chalmers, Bobcat, Case, Caterpillar, Fiat, Onan, Massey Ferguson Equipment" |
| Furnished Gasket | {G105} |
| Grommets | [2] Attached |
| Height | 4 7/16 |
| Height (mm) | 112.7 |
| Inside Diameter 1 | 2-Jan |
| Inside Diameter 1 (mm) | 12.7 |
| Optional Gasket | "{G115-A}, {G402}" |
| Outside Diameter 1 | 3 23/32 |
| Outside Diameter 1 (mm) | 94.5 |
| Replaces | Clark 604081; Hyster 60518-24; Massey Ferguson 1014219-M91 |
| Fits | Mercedes-Benz, Porsche, Fiat, and Jeep · 5 vehicles |
Engine oil filter. Keeps oil circulating through a clean, replaceable filter element.
Furnished gasket. Includes gasket {G105} for a proper seal during service.
Attached grommets. Two attached grommets help support a secure fit in the housing.
Baldwin P40 Engine Oil Filter
The Baldwin P40 is an engine oil filter element for equipment and vehicle applications that use Fram F3 Series housings. It is built around the listed dimensions and gasket/grommet details to support proper sealing in the specified applications, including select Mercedes-Benz 300D and Jeep CJ5 fitments.
Key Features
- Engine oil filter element for Baldwin P40 applications
- Fits Clark, Galion, and Hyster in Fram F3 Series housings
- Also listed for Allis Chalmers, Bobcat, Case, Caterpillar, Fiat, Onan, and Massey Ferguson equipment
- Furnished gasket: G105
- Attached grommets: 2
- Dimensions: 4 7/16 in. height, 3 23/32 in. outside diameter, 2 1/2 in. inside diameter
- Replaces Clark 604081, Hyster 60518-24, and Massey Ferguson 1014219-M91
Detailed Description
Baldwin P40 is an engine oil filter designed for applications calling for a Fram F3 Series housing element. The listed fitment includes 1975-1976 Mercedes-Benz 300D, 1963 Jeep CJ5 fuel filter element use, and 1959-1960 Jeep CJ5. For buyers searching for a Baldwin P40 oil filter for Mercedes-Benz 300D or a Baldwin P40 replacement for Jeep CJ5 applications, the published dimensions and sealing components help identify the correct service part.
This part cross-references Clark 604081 and Hyster 60518-24 for the same application.
What It Helps Address
- Dirty engine oil passing through a worn or clogged filter element
- Loss of filtration efficiency in service intervals
- Seal leakage at the filter housing interface
- Incorrect replacement selection for Fram F3 Series housings
- Fitment matching for Mercedes-Benz 300D and Jeep CJ5 service needs
Installation Notes and Tips
Verify housing style, gasket match, and element dimensions before installation. Confirm the Baldwin P40 matches the existing filter height, outside diameter, and inside diameter, especially when servicing Clark, Hyster, Mercedes-Benz 300D, or Jeep CJ5 applications. Inspect the housing sealing surfaces and replace the filter at the manufacturer-recommended service interval.
Quality Assurance
Baldwin publishes the application data, replacement references, and dimensional specifications used to identify this filter element. Review the listed fitment and measurements against the vehicle or equipment service requirements before ordering.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1976 | Mercedes-Benz | 300D | 3.0L | L5 | DIESEL | N/A | — |
| 1975 | Mercedes-Benz | 300D | 3.0L | L5 | DIESEL | N/A | — |
| 1963 | Jeep | CJ5 | 2.2L | L4 | — | N/A | Fuel Filter: Element |
| 1960 | Jeep | CJ5 | 2.2L | L4 | — | N/A | — |
| 1959 | Jeep | CJ5 | 2.2L | L4 | — | N/A | — |
