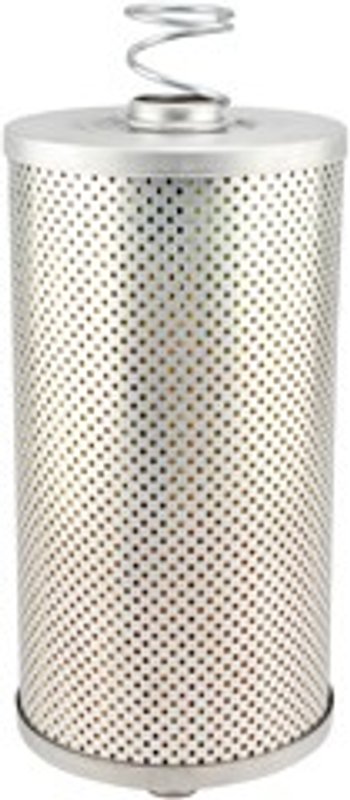

Baldwin P996 Engine Oil Filter

Engine Oil Filter Overview

The Baldwin P996 engine oil filter is built for heavy-duty full-flow and bag-style applications. It uses an attached gasket and an integrated two-way 8 PSID bypass valve to support proper oil flow control in compatible systems.

Key Features

• Engine oil filter for heavy-duty lubrication systems
• Attached gasket for a direct sealing interface
• Two-way 8 PSID bypass valve for controlled oil routing
• Attached spring for internal filter support
• Compatible with full-flow, bag-style applications

Detailed Application Notes

Fits 1985-2002 Kenworth K100E, N/A; 1981-1985 Kenworth K100, N/A; 1981-1985 Mack RWL, N/A; 1981-1985 Mack RWS, N/A; 1982-1983 Mack WL, N/A; 1965-1980 Peterbilt 282, N/A. The Baldwin P996 is specified for full-flow, bag applications and includes dimensions that match the listed service format. If a conversion kit is already installed, or if the engine was originally equipped with an element-type setup, use the referenced alternate part noted by the manufacturer.

What It Helps Address

• Oil filtration service on compatible heavy-duty engines
• Bypass valve control in systems that require regulated flow
• Sealing issues related to worn or missing filter gaskets
• Fitment concerns when replacing a bag-style filter element

Installation Notes and Quality

Verify the existing filter style, gasket requirement, and bypass specification before installation. The manufacturer notes an alternate part for conversion-kit or element-type setups, so matching the original configuration is important. Baldwin part number P996 is identified for the applications listed above.
