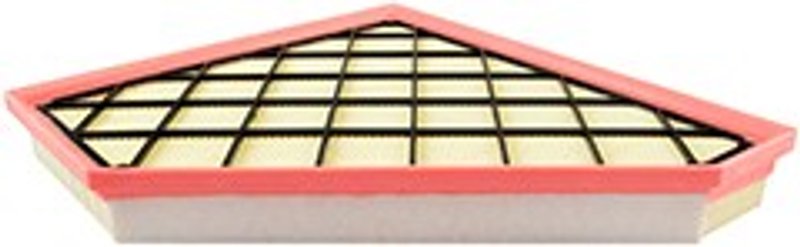

Baldwin PA10390 Air Filter

Brand Baldwin PA10390
Attached Gasket [1] Included
Fits "Cadillac ATS, CTS; Chevrolet Camaro"
Height 1 1/8
Height (mm) 28.6
Length 12 1/4
Length (mm) 311.2
Replaces ACDelco A3178C; General Motors Corp. 20857930; Wix 49830
Width 2 3/4
Width (mm) 69.9
Width 2 11
Width 2 (mm) 279.4
Fits Chevrolet and Cadillac · 45 vehicles

Engine air filter. Keeps intake air moving through the engine cleanly.

Attached gasket included. Provides a secure seal for dependable filtration.

$31.06Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $31.06
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Baldwin PA10390 Engine Air Filter

The Baldwin PA10390 engine air filter is built for direct-fit service on select Cadillac ATS, Cadillac CTS, and Chevrolet Camaro applications. It uses an attached gasket for a secure seal and follows OE-style dimensions for proper airbox fitment.

Key Features

  • Engine air filter for air and fuel delivery service
  • Attached gasket included for sealing at the filter interface
  • Dimensions: 12 1/4 in. length, 2 3/4 in. width, 1 1/8 in. height
  • Secondary width dimension: 11 in. for application-specific fitment
  • Replaces ACDelco A3178C, General Motors Corp. 20857930, and Wix 49830
  • Fits 2013-2019 Cadillac ATS, 2014-2019 Cadillac CTS, and 2016-2023 Chevrolet Camaro

Detailed Description

Baldwin PA10390 is an engine air filter for vehicles that require the listed OE-style dimensions and sealing profile. It is specified for Cadillac ATS, Cadillac CTS, and Chevrolet Camaro fitments across the model years shown, including 2013-2019 Cadillac ATS, 2014-2019 Cadillac CTS, and 2016-2023 Chevrolet Camaro. If you are replacing a worn filter on a Cadillac ATS, Cadillac CTS, or Chevrolet Camaro, PA10390 provides a direct-reference service part number for the listed applications.

This part cross-references ACDelco A3178C and Wix 49830 for the same application.

What It Is Used For

  • Replacing a restricted or dirty engine air filter
  • Restoring proper air intake filtration in the engine airbox
  • Addressing fitment issues caused by incorrect filter dimensions
  • Replacing OE numbers 20857930 or A3178C in the listed vehicles
  • Servicing air filter maintenance on Cadillac ATS, Cadillac CTS, and Chevrolet Camaro models

Installation Notes and Tips

Verify the OE number and filter dimensions before installation. Confirm the airbox uses the attached gasket style and compare the length, width, height, and secondary width measurements to the removed filter. For best results, install the Baldwin PA10390 in a clean airbox and inspect the sealing surfaces before closing the housing.

Quality Assurance

Baldwin manufactures filtration components for automotive service applications, and PA10390 is listed with direct OE reference numbers for the specified fitments. Use the vehicle year, make, model, and OE number to confirm application match before purchase.

This part fits 45 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2023ChevroletCamaro3.6LV6N/AOE Number : 20857930
2022ChevroletCamaro2.0LL4N/AOE Number : 20857930
2022ChevroletCamaro3.6LV6N/AOE Number : 20857930
2021ChevroletCamaro2.0LL4N/AOE Number : A3178C
2021ChevroletCamaro3.6LV6N/AOE Number : A3178C
2020ChevroletCamaro2.0LL4N/AOE Number : 20857930
2020ChevroletCamaro3.6LV6N/AOE Number : 20857930
2019CadillacATS2.0LL4N/AOE Number : 20857930
2019CadillacATS3.6LV6N/AOE Number : 20857930
2019CadillacCTS2.0LL4N/AOE Number : 20857930
2019CadillacCTS3.6LV6N/AOE Number : A3178C
2019ChevroletCamaro2.0LL4N/AOE Number : 20857930
2019ChevroletCamaro3.6LV6N/AOE Number : 20857930
2018CadillacATS2.0LL4N/AOE Number : A3178C
2018CadillacATS3.6LV6N/AOE Number : A3178C
2018CadillacCTS2.0LL4N/AOE Number : A3178C
2018CadillacCTS3.6LV6N/AOE Number : A3178C
2018ChevroletCamaro2.0LL4N/AOE Number : A3178C
2018ChevroletCamaro3.6LV6N/AOE Number : A3178C
2017CadillacATS2.0LL4N/AOE Number : A3178C
2017CadillacATS2.5LL4N/AOE Number : A3178C
2017CadillacATS3.6LV6N/AOE Number : A3178C
2017CadillacCTS2.0LL4N/AOE Number : A3178C
2017CadillacCTS3.6LV6N/AOE Number : A3178C
2017ChevroletCamaro2.0LL4N/AOE Number : A3178C
2017ChevroletCamaro3.6LV6N/AOE Number : A3178C
2016CadillacATS2.0LL4N/AOE Number : A3178C
2016CadillacATS2.5LL4N/AOE Number : A3178C
2016CadillacATS3.6LV6N/AOE Number : A3178C
2016CadillacCTS2.0LL4N/AOE Number : A3178C
2016CadillacCTS3.6LV6N/AOE Number : A3178C
2016ChevroletCamaro2.0LL4N/AOE Number : A3178C
2016ChevroletCamaro3.6LV6N/AOE Number : A3178C
2015CadillacATS2.0LL4N/AOE Number : A3178C
2015CadillacATS2.5LL4N/AOE Number : A3178C
2015CadillacATS3.6LV6N/AOE Number : A3178C
2015CadillacCTS2.0LL4N/AOE Number : A3178C
2015CadillacCTS3.6LV6N/AOE Number : A3178C
2014CadillacATS2.0LL4N/AOE Number : 20857930
2014CadillacATS2.5LL4N/AOE Number : 20857930
2014CadillacATS3.6LV6N/AOE Number : 20857930
2014CadillacCTS2.0LL4N/AOE Number : A3178C
2013CadillacATS2.0LL4N/AOE Number : A3178C
2013CadillacATS2.5LL4N/AOE Number : A3178C
2013CadillacATS3.6LV6N/AOE Number : A3178C
