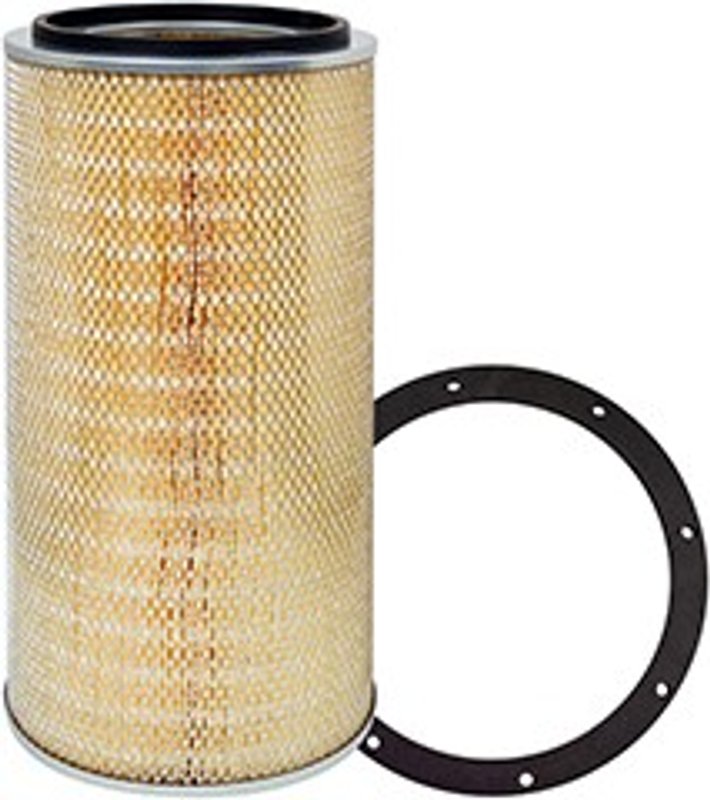

Baldwin PA2312 Engine Air Filter

Overview of Baldwin PA2312 Engine Air Filter

The Baldwin PA2312 engine air filter is designed for heavy-duty trucks including Kenworth, Mack, Peterbilt, and R.V.I. models. Engineered with two attached gaskets and an inside-out flow direction, this filter supports efficient air filtration to maintain engine performance.

• Compatible with Kenworth, Mack, Peterbilt, and R.V.I. trucks
• Two attached gaskets for secure sealing
• Inside-out flow direction for optimal filtration
• Height: 22 13/16 inches (579.4 mm)
• Inside diameter: 6 1/32 inches (153.2 mm)
• Outside diameter: 10 3/8 inches (263.5 mm)
• Replaces GMC 15586905, Kenworth KW853M, Mack 2MD2147
• Optional gasket available: G499-AF

Detailed Product Description

The Baldwin PA2312 engine air filter is specifically designed to fit a range of heavy-duty trucks such as Kenworth, Mack, Peterbilt, and R.V.I. This filter features two attached gaskets, including the furnished G21-AF gasket, ensuring a tight and reliable seal to prevent unfiltered air from entering the engine. Its inside-out flow direction supports effective filtration by capturing contaminants before air reaches the engine.

With a height of 22 13/16 inches (579.4 mm), an inside diameter of 6 1/32 inches (153.2 mm), and an outside diameter of 10 3/8 inches (263.5 mm), the PA2312 is engineered to meet the precise specifications required for these truck models. It replaces OEM part numbers such as GMC 15586905, Kenworth KW853M, and Mack 2MD2147, making it a direct replacement option for maintenance and repair.

Applications and Problem Solving

• Prevents engine damage caused by dust and debris
• Maintains optimal engine air flow for fuel efficiency
• Reduces engine wear by filtering contaminants
• Helps avoid costly downtime due to air filter failure
• Ensures compliance with manufacturer air filtration requirements

Installation Notes and Tips

When installing the Baldwin PA2312, ensure the inside-out flow direction is correctly oriented to maintain proper filtration. Verify that the two attached gaskets are seated properly to avoid air leaks. An optional gasket (G499-AF) is available if replacement is needed. This filter is designed for one-end installation and fits specific truck models, so confirm compatibility with your vehicle before installation.

Quality Assurance

Baldwin filters are manufactured to meet industry standards for durability and filtration efficiency. The PA2312 is related to the LL2312 long-life media version, offering options for extended service intervals. While no specific warranty information is provided, Baldwin products are known for consistent quality and reliable performance in heavy-duty applications.
