Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

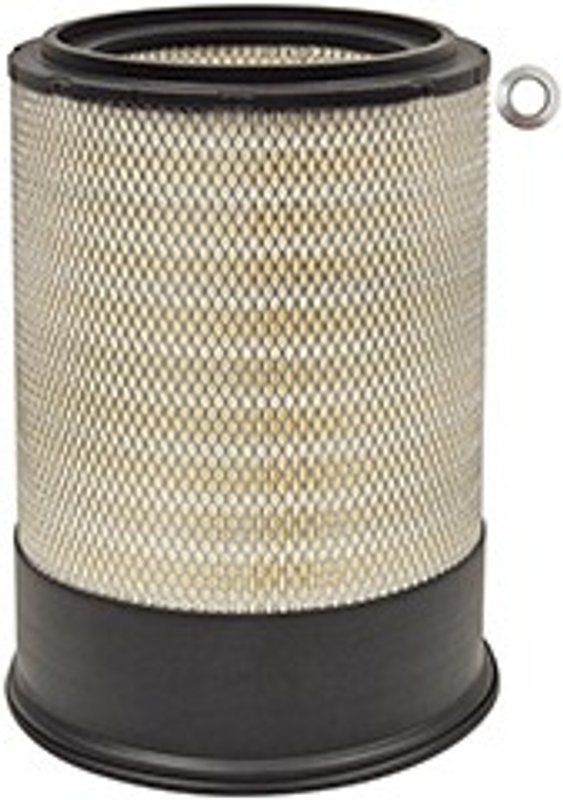

Baldwin PA2326 Engine Air Filter - Outer
| Brand | Baldwin PA2326 |
|---|---|
| Position | Outer |
| Attached Gasket | [2] attached |
| Fits | Peterbilt trucks |
| Furnished Gasket | [1] included |
| Height | 17 1/2 |
| Height (mm) | 444.5 |
| Inside Diameter 1 | 15/16 |
| Inside Diameter 1 (mm) | 23.8 |
| Inside Diameter 2 | 8 3/8 |
| Inside Diameter 2 (mm) | 212.7 |
| Outside Diameter 1 | 12 3/4 |
| Outside Diameter 1 (mm) | 323.8 |
| Outside Diameter 2 | 13 3/8 |
| Outside Diameter 2 (mm) | 339.7 |
| Related to | {ll2326} (long-life media version);{pa2326xp} (extreme performanc |
| Remark 1 | Boot gasket |
| Remark 2 | & |
| Replaces | White 27-088627; donaldson eaf5057 |
| Fits | — |
Engine air filter. Filters intake air to help protect the engine from contaminants.
Attached gasket. Includes a built-in gasket for a more secure seal.
Boot gasket design. Uses a boot-style gasket for straightforward installation.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PA2326 Engine Air Filter for Peterbilt Trucks
The Baldwin PA2326 engine air filter is built for Peterbilt trucks that need dependable intake filtration and a precise sealing fit. With a boot gasket design, this filter supports clean airflow into the engine while helping keep dust and road debris out of the intake system.
- Engine air filter for Peterbilt trucks
- Part number PA2326
- Height: 17 1/2 in. (444.5 mm)
- Outside diameter 1: 12 3/4 in. (323.8 mm)
- Outside diameter 2: 13 3/8 in. (339.7 mm)
- Inside diameter 1: 15/16 in. (23.8 mm)
- Inside diameter 2: 8 3/8 in. (212.7 mm)
- Attached gasket: 2 attached
- Furnished gasket: 1 included
- Replaces White 27-088627 and Donaldson EAF5057
Detailed Fitment and Application
Use the Baldwin PA2326 when servicing Peterbilt truck air intake systems that call for this filter size and boot gasket configuration. The PA2326 is also related to Baldwin LL2326 long-life media and Baldwin PA2326XP extreme performance nano versions, giving buyers a clear reference point when comparing filtration options for the same application. If you are searching for a Peterbilt Trucks engine air filter, Baldwin PA2326 is the direct part number to match against your existing filter dimensions and sealing style.
This part cross-references White 27-088627 and Donaldson EAF5057 for the same application.
What This Air Filter Helps Address
- Restricted engine airflow from a loaded or dirty air filter
- Dust and debris entering the intake tract
- Incorrect filter sizing during replacement service
- Seal leakage at the air cleaner connection
- Maintenance intervals tied to heavy-duty truck operation
Installation Notes and Tips
Confirm the filter dimensions, gasket style, and housing connection before installation. Match the Baldwin PA2326 to the removed filter or service specifications for Peterbilt trucks, and inspect the air cleaner housing for dirt, damage, or worn sealing surfaces before fitting the new element. A clean housing and proper gasket contact help the filter seat correctly.
Quality Assurance
Baldwin filters are specified for heavy-duty filtration applications and are identified here by part number PA2326 for accurate replacement selection. Verify the dimensions and replacement references before ordering to ensure the correct service part for your Peterbilt truck.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| No rows match your filter. | ||||
