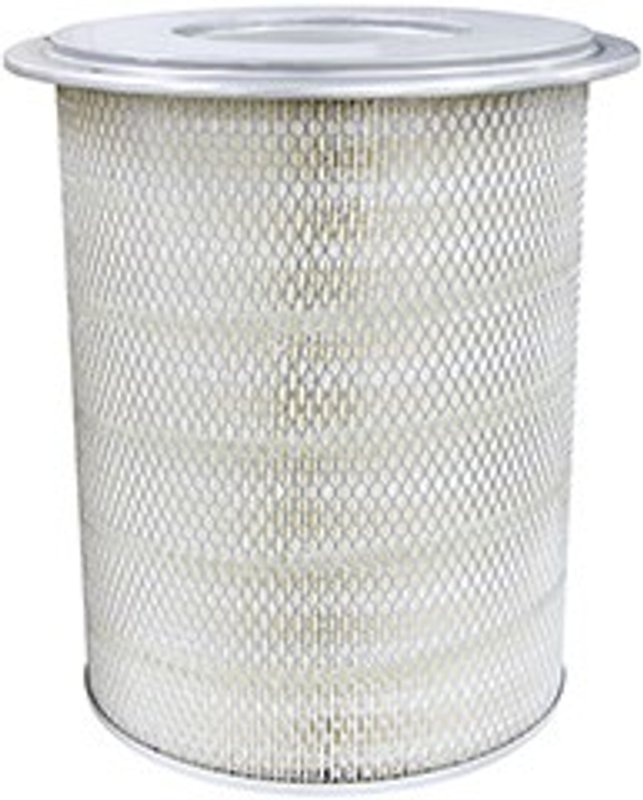

Baldwin PA2333 Engine Air Filter - Single
| Brand | Baldwin PA2333 |
|---|---|
| Position | Single |
| Attached Gasket | [2] attached |
| Fits | "freightliner, gmc, international trucks" |
| Height | 18 9/16 |
| Height (mm) | 471.5 |
| Inside Diameter 1 | 9 1/2 |
| Inside Diameter 1 (mm) | 241.3 |
| Outside Diameter 1 | 13 13/16 |
| Outside Diameter 1 (mm) | 350.8 |
| Outside Diameter 2 | 16 5/32 |
| Outside Diameter 2 (mm) | 410.4 |
| Related to | {ll2333} (long-life media version) |
| Remark 1 | Lid |
| Remark 2 | One end |
| Replaces | Gmc 25096450; international 1685307-c1; white 22-0010240 |
| Fits | — |
Attached gasket. Helps create a secure seal for cleaner air filtration.
Long-life media version. Built for extended service intervals and dependable airflow.
Engine air filter. Filters incoming air to protect the engine from contaminants.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PA2333 Engine Air Filter
The Baldwin PA2333 engine air filter is built for heavy-duty air intake service in Freightliner, GMC, and International Trucks applications. It uses a lid-style, one-end design with attached gaskets to support a secure seal at the air cleaner housing.
Key Features
- Engine air filter for air and fuel delivery systems
- Fits Freightliner, GMC, and International Trucks applications
- Part number PA2333 for direct reference and ordering
- Attached gasket design with two attached gaskets
- One-end, lid-style configuration
- Dimensions: 18 9/16 in. height, 9 1/2 in. inside diameter, 13 13/16 in. and 16 5/32 in. outside diameters
- Replaces GMC 25096450, International 1685307-C1, and White 22-0010240
Detailed Description
Baldwin PA2333 is an engine air filter designed for truck air intake systems that require a cylindrical filter with specific sealing and dimensional requirements. The filter measures 18 9/16 inches tall, with a 9 1/2 inch inside diameter and outside diameters of 13 13/16 inches and 16 5/32 inches. Its attached gasket layout and one-end lid configuration help it match the housing style used in Freightliner, GMC, and International Trucks service applications. The PA2333 part number is also related to Baldwin LL2333, the long-life media version.
This Baldwin PA2333 air filter cross-references GMC 25096450 and International 1685307-C1 for the same application.
What It Helps Address
- Restricted engine airflow from a loaded or worn air filter
- Dust and debris entering the intake system through a compromised seal
- Incorrect filter sizing in Freightliner, GMC, and International Trucks housings
- Service replacement needs for OE-style air filter part numbers
- Air cleaner maintenance on heavy-duty diesel truck applications
Installation Notes and Tips
Verify housing dimensions, end style, and gasket placement before installation. Match the filter height, inside diameter, and outside diameters to the existing air cleaner assembly, and confirm the replacement part number PA2333 against the original filter reference. For best results, inspect the air cleaner housing and sealing surfaces for dirt or damage before installing the new filter.
Quality Assurance
Baldwin is a recognized name in filtration for automotive and heavy-duty applications. PA2333 is listed with direct replacement references and dimensional specifications to support accurate part matching for Freightliner, GMC, and International Trucks service work.
