Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

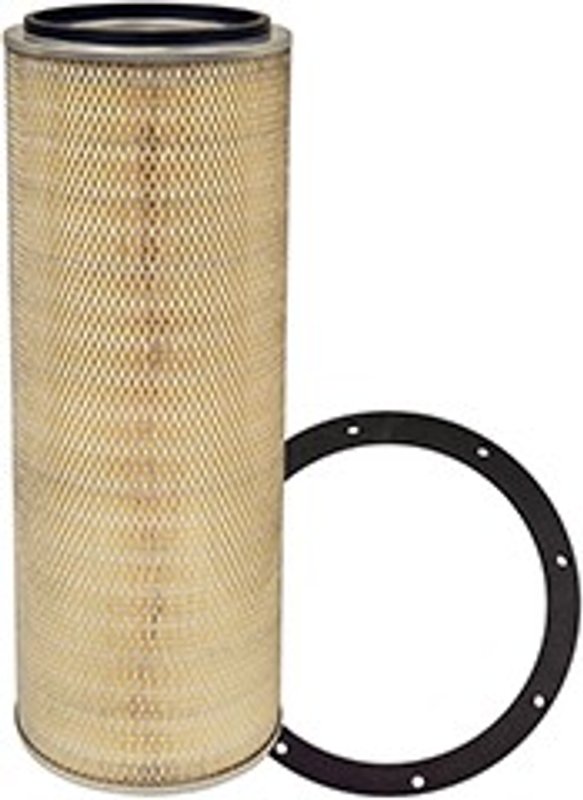

Baldwin PA2493 Engine Air Filter
| Brand | Baldwin PA2493 |
|---|---|
| Attached Gasket | [2] attached |
| Fits | Western star trucks |
| Furnished Gasket | {g21-af} |
| Height | 27 |
| Height (mm) | 685.8 |
| Inside Diameter 1 | 6 1/32 |
| Inside Diameter 1 (mm) | 153.2 |
| Notes | Inside-out flow direction |
| Outside Diameter 1 | 10 3/8 |
| Outside Diameter 1 (mm) | 263.5 |
| Related to | {ll2493} (long-life media version) |
| Remark 2 | One end |
| Replaces | White 22-0054401 |
| Fits | — |
Engine air filter. Built for clean airflow and dependable engine protection.
Attached gasket. Includes attached sealing surfaces for a more secure fit.
Long-life media version. Designed for extended service intervals and consistent filtration.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PA2493 Engine Air Filter
The Baldwin PA2493 is an engine air filter for Western Star Trucks applications that require an inside-out flow direction. It uses an attached gasket design and a furnished gasket reference of G21-AF to support a proper seal in the air intake system.
Key Features
- Engine air filter for Western Star Trucks
- Inside-out flow direction
- Attached gasket design with furnished gasket reference G21-AF
- One-end construction
- Dimensions: 27 in. height, 10 3/8 in. outside diameter, 6 31/32 in. inside diameter
- Replaces White 22-0054401
Detailed Description
Built for heavy-duty air filtration service, Baldwin PA2493 is sized at 27 inches tall with a 10 3/8-inch outside diameter and a 6 31/32-inch inside diameter. The filter is specified for Western Star Trucks and is identified as an engine air filter with inside-out flow direction, making it important to match the airflow path to the intake housing before installation. Baldwin PA2493 is also related to LL2493, the long-life media version, for buyers comparing service intervals and media type.
This part cross-references White 22-0054401 for the same application.
What It Is Used For
- Replacing a worn or restricted Western Star Trucks engine air filter
- Restoring intake airflow when dust loading increases restriction
- Addressing poor filtration caused by damaged sealing surfaces
- Correcting fitment issues when the existing filter uses the G21-AF gasket reference
- Maintaining proper air cleaner service on heavy-duty diesel intake systems
Installation Notes and Tips
Verify the filter housing dimensions, gasket style, and inside-out flow direction before installation. Confirm that the attached gasket and furnished gasket reference match the air cleaner assembly on the truck. Inspect the sealing surfaces for debris or damage so the filter seats evenly and the intake system closes properly.
Quality Assurance
Baldwin filters are built for heavy-duty filtration applications and are identified by precise dimensional and fitment specifications to support correct part selection for Western Star Trucks service.
