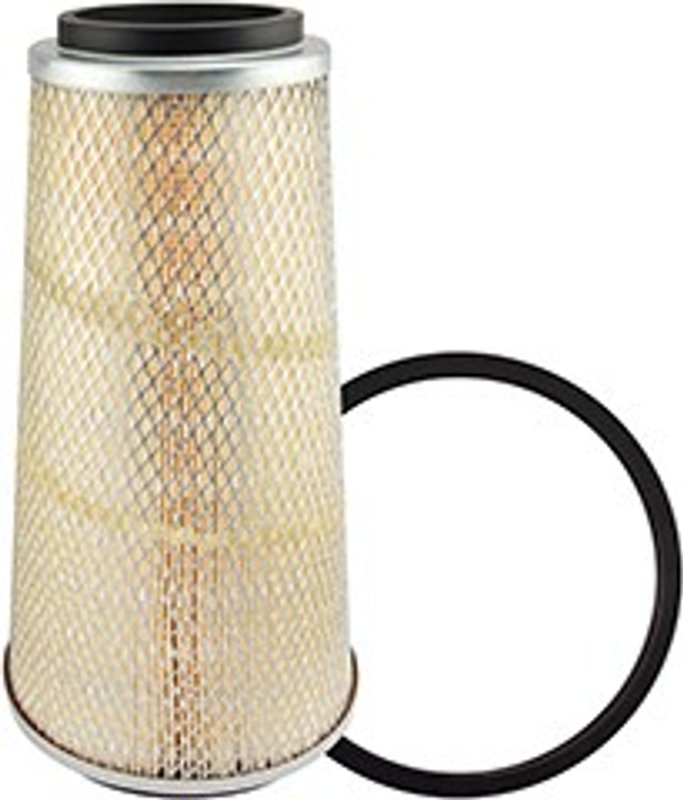

Baldwin PA2540 Engine Air Filter

Brand Baldwin PA2540
Attached Gasket [2] attached
Fits "gmc, mack trucks; caterpillar loaders"
Furnished Gasket [1] included
Height 16
Height (mm) 406.4
Inside Diameter 1 5 3/16
Inside Diameter 1 (mm) 131.8
Outside Diameter 1 5 3/4
Outside Diameter 1 (mm) 146
Outside Diameter 2 8 21/32
Outside Diameter 2 (mm) 219.9
Related to {pa2500} (long version)
Remark 1 To
Replaces Gmc 25040529; mack 57md27
Fits Mack · 122 vehicles

OE replacement. Replaces GMC 25040529 and Mack 57MD27 for application matching.

Sealing support. Attached gaskets and a furnished gasket help maintain a secure air cleaner seal.

Heavy-duty filtration. Built as an engine air filter for commercial air intake service.

$87.45Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $87.45
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Overview

Baldwin PA2540 is an engine air filter built for heavy-duty air intake service on compatible Mack trucks and Caterpillar loaders. It uses attached gaskets and a furnished gasket to support a secure seal in the air cleaner assembly, and its conical form is noted in several fitment rows.

Key Features

  • Engine air filter for heavy-duty air intake systems
  • Attached gaskets help maintain a sealed installation
  • Furnished gasket included for service replacement
  • Conical design noted for select Mack Mid-Liner applications
  • Replaces GMC 25040529 and Mack 57MD27

Detailed Description

PA2540 is a Baldwin engine air filter with dimensions of 16 inches tall, 5 3/16 inches inside diameter, 5 3/4 inches outside diameter at one end, and 8 21/32 inches outside diameter at the other. The filter is referenced as related to Baldwin PA2500 in the long version and is listed as a replacement for GMC 25040529 and Mack 57MD27. This part cross-references Mack 57MD27 and GMC 25040529 for the same application.

Compatible With Mack CS200P Mid-Liner, CS300P Mid-Liner, CS250P Mid-Liner, CS300T Mid-Liner, MS300P Mid-Liner, MS300T Mid-Liner, MS200P Mid-Liner, and MS250P Mid-Liner applications, with fitment notes calling out conical versions on select models. It is also listed for Caterpillar loaders in the product attributes.

What It Is Used For

  • Restricting dust and debris from entering the engine intake
  • Replacing a worn or contaminated air filter element
  • Restoring proper air filtration in heavy-duty service
  • Addressing fitment needs for conical air cleaner assemblies

Installation Notes and Tips

Verify the air cleaner housing dimensions and the conical or standard configuration before ordering. Match the replacement to the OE number 57MD27 or GMC 25040529 when confirming application details. Use the attached and furnished gasket information to compare against the existing seal arrangement during service.

Quality Assurance

Baldwin is a recognized name in filtration for commercial and off-highway equipment, and PA2540 is cataloged with OE replacement references for application matching.

This part fits 122 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2001MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
2001MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
2001MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
2000MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
2000MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
2000MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
2000MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1999MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1999MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1999MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1999MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1998MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1998MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1998MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1998MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1997MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1997MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1997MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1997MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1997MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1996MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1995MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1994MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1993MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackCS200P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1992MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS250P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS300P Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS300T Mid-Liner6.2LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS300P Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS300T Mid-Liner6.2LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1991MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1990MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1989MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1988MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1987MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackCS200P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackCS250P Mid-Liner5.5LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackCS300P Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackCS300T Mid-Liner8.8LL6See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1986MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1985MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1985MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1985MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1985MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1984MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1984MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1984MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1984MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1983MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1983MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1983MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1982MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1982MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1982MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1981MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1981MackMS250P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1981MackMS300P Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1981MackMS300T Mid-Liner8.8LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
1980MackMS200P Mid-Liner5.5LL6Conical; See Product Guide for Variations of This Number.; OE Number : 57MD27
