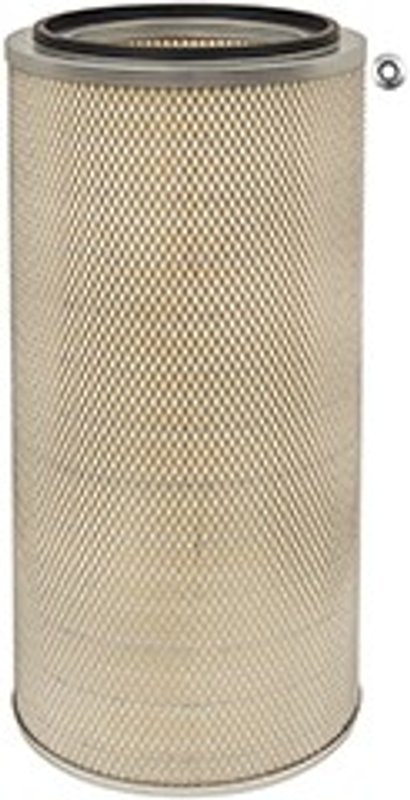

Baldwin PA2608 Engine Air Filter

Brand Baldwin PA2608
Attached Gasket [2] attached
Fits Peterbilt trucks; vortox housings
Furnished Gasket [1] included
Height 27
Height (mm) 685.8
Inside Diameter 1 21/32
Inside Diameter 1 (mm) 16.7
Inside Diameter 2 8 11/32
Inside Diameter 2 (mm) 211.9
Notes Inside-out flow direction
Outside Diameter 1 12 3/4
Outside Diameter 1 (mm) 323.8
Related to {ll2608} (long-life media version)
Remark 2 &
Replaces Gmc 25096184; vortox vf160r
Fits —

Long-life media version. Built for extended service life in demanding air filtration applications.

Attached gasket. Two attached gaskets help create a secure seal.

Included gasket. Comes with one furnished gasket for installation.

$144.23Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $144.23
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Baldwin PA2608 Engine Air Filter

The Baldwin PA2608 is an engine air filter for Peterbilt Trucks with Vortox housings. It is built with an inside-out flow direction and uses attached and furnished gasket details to support a proper seal in the air intake system. The PA2608 is also referenced as a replacement for GMC 25096184 and Vortox VF160R.

Key Features

  • Engine air filter for air and fuel delivery applications
  • Fits Peterbilt Trucks; Vortox Housings
  • Inside-out flow direction
  • Height: 27 in. (685.8 mm)
  • Outside diameter 1: 12 3/4 in. (323.8 mm)
  • Inside diameter 1: 21/32 in. (16.7 mm)
  • Inside diameter 2: 8 11/32 in. (211.9 mm)
  • Attached gasket: [2] attached
  • Furnished gasket: [1] included
  • Related to LL2608 long-life media version

Detailed Description

Baldwin PA2608 is an engine air filter designed for Peterbilt Trucks using Vortox housings. The filter dimensions and gasket configuration are listed to help match the correct housing and sealing surface during service. If you are searching for a Baldwin PA2608 air filter, Peterbilt Trucks air filter replacement, or a Vortox housing engine air filter, this part number is the direct reference to verify against the existing unit. This part cross-references GMC 25096184 and Vortox VF160R for the same application.

Common Service Issues

  • Restricted airflow from a loaded or dirty engine air filter
  • Dust and debris entering the intake through a worn sealing surface
  • Incorrect housing match when replacing a Vortox-style filter element
  • Service delays caused by mismatched dimensions or flow direction
  • Reduced intake efficiency from an air filter that no longer seals correctly

Installation Notes and Tips

Confirm the housing style, dimensions, and flow direction before installation. Match the Baldwin PA2608 to the existing filter height, outside diameter, and inside diameters, and verify that the attached and furnished gasket arrangement aligns with the air cleaner housing. For Peterbilt Trucks and Vortox housings, compare the old filter to the new unit before final assembly.

Quality Assurance

Baldwin manufactures filtration products for heavy-duty service applications, and the PA2608 is specified with clear dimensional and sealing details to support accurate replacement selection. Verify fitment against the housing and service part number before installation.

This part fits 0 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
