Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

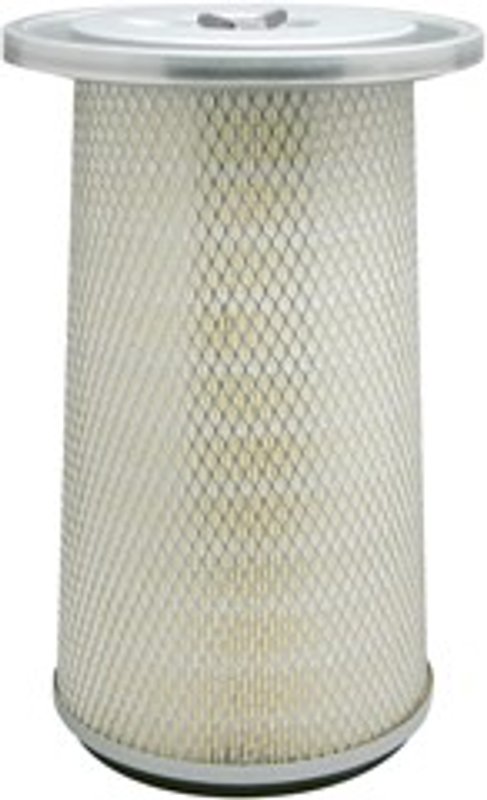

Baldwin PA2677 Engine Air Filter
| Brand | Baldwin PA2677 |
|---|---|
| Attached Gasket | [2] attached |
| Fits | Mack trucks |
| Furnished Gasket | "{g103-n}, [1] wing nut" |
| Height | 15 9/16 |
| Height (mm) | 395.3 |
| Inside Diameter 1 | 21/32 |
| Inside Diameter 1 (mm) | 16.7 |
| Inside Diameter 2 | 5 3/16 |
| Inside Diameter 2 (mm) | 131.8 |
| Outside Diameter 1 | 8 21/32 |
| Outside Diameter 1 (mm) | 219.9 |
| Outside Diameter 2 | 9 13/16 |
| Outside Diameter 2 (mm) | 249.2 |
| Remark 1 | Lid |
| Remark 2 | & |
| Replaces | Mack 2191p13-8427 |
| Fits | — |
Engine air filter. Keeps intake air clean for dependable engine protection.
Attached gasket. Built with integrated sealing surfaces for a secure fit.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PA2677 Engine Air Filter for Mack Trucks
The Baldwin PA2677 engine air filter is built for Mack Trucks applications that require a large-format air cleaner element with precise sealing dimensions. It replaces Mack 2191P13-8427 and is specified with attached gaskets and a furnished gasket set for the listed housing configuration.
Key Features
- Engine air filter for Mack Trucks
- Part number PA2677 for direct reference and ordering
- Replaces Mack 2191P13-8427
- Attached gasket design with furnished gasket components
- Dimensions: 15 9/16 in. height, 8 21/32 in. outside diameter 1, and 9 13/16 in. outside diameter 2
- Inside diameters: 21/32 in. and 5 3/16 in.
Detailed Description
Baldwin PA2677 is an engine air filter designed for Mack Trucks air intake systems that use the listed lid-and-gasket arrangement. The filter’s measured height of 395.3 mm and dual outside diameters of 219.9 mm and 249.2 mm help identify the correct housing fit, while the inside diameters of 16.7 mm and 131.8 mm support accurate cross-checking against the original component. If you are searching for a Mack Trucks engine air filter replacement, Baldwin PA2677 provides a direct reference point for service parts matching and catalog lookup.
This part cross-references Mack 2191P13-8427 for the same application.
Used For
- Replacing a worn or restricted Mack Trucks engine air filter
- Restoring proper air intake service on the specified housing
- Addressing dust loading that can reduce airflow through the intake system
- Correcting fitment issues caused by an incorrect filter size or gasket profile
- Supporting routine maintenance on Mack Trucks air filtration systems
Installation Notes and Tips
Verify the housing dimensions, gasket style, and lid configuration before installation. Confirm the part number PA2677 against the removed filter and compare the outside diameter, inside diameter, and height measurements to the existing air cleaner assembly. Clean the air box and sealing surfaces before installing the new filter to help ensure proper seating.
Quality Assurance
Baldwin filters are cataloged for heavy-duty service applications and are identified by precise dimensional specifications for accurate replacement selection. Use the listed measurements and Mack Trucks reference to confirm the correct service part before installation.
