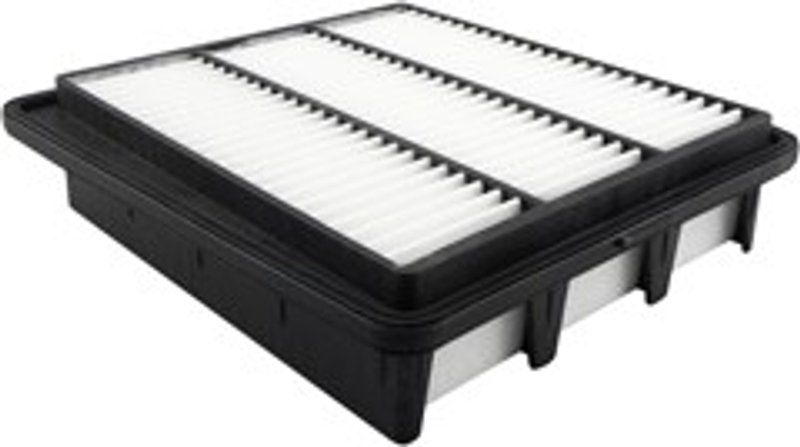

Baldwin PA4345 Air Filter
| Brand | Baldwin PA4345 |
|---|---|
| Attached Gasket | [1] Attached |
| Fits | "Mazda3, Mazda5, MazdaSpeed3" |
| Height | 2 3/32 |
| Height (mm) | 53.2 |
| Length | 10 27/32 |
| Length (mm) | 275.4 |
| Replaces | "Mazda LF50-13-Z40A, LF50-13-Z40-9U" |
| Width | 7 3/8 |
| Width (mm) | 187.3 |
| Fits | Mazda · 41 vehicles |
Attached gasket. Helps create a secure seal for dependable filtration.
Engine air filter. Cleans incoming air to support engine performance.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PA4345 Engine Air Filter for Mazda
The Baldwin PA4345 engine air filter is built for Mazda 3, Mazda 3 Sport, and Mazda 5 applications that use the listed OE numbers. It provides a direct-fit air filtration solution for 2004-2016 Mazda models with the specified dimensions and attached gasket.
Key Features
- Engine air filter for Mazda 3, Mazda 3 Sport, and Mazda 5 applications
- Direct replacement for OE numbers LF50-13-Z40A and LF50-13-Z40-9U
- Attached gasket for a secure sealing surface
- Dimensions: 10 27/32 in. length, 7 3/8 in. width, 2 3/32 in. height
- Fits confirmed Mazda applications from 2004 through 2016
- Part number PA4345 for catalog and service reference
Detailed Description
Baldwin PA4345 is an engine air filter sized for the Mazda intake housing used across multiple Mazda 3, Mazda 3 Sport, and Mazda 5 model years. The filter measures 275.4 mm long, 187.3 mm wide, and 53.2 mm high, and includes an attached gasket to support proper sealing at the air box interface. This part cross-references Mazda LF50-13-Z40A and LF50-13-Z40-9U for the same application. Use PA4345 when replacing the factory air filter on vehicles such as the 2004-2007 Mazda 3, 2006-2008 Mazda 5, 2008-2010 Mazda 3, 2009-2010 Mazda 3 Sport, and 2011-2013 Mazda 3.
What It Helps Address
- Restricted airflow from a dirty or clogged engine air filter
- Dust and debris entering the intake tract
- Reduced filtration performance from a worn OE-style filter
- Improper sealing at the air filter housing
- Routine maintenance needs on Mazda 3 and Mazda 5 intake systems
Installation Notes and Tips
Verify the OE number and housing dimensions before installation. Replace the filter during scheduled maintenance, and inspect the air box, gasket surface, and intake ducting for dirt or damage before closing the housing. Confirm fitment against the vehicle year, model, and OE reference listed for your Mazda 3, Mazda 3 Sport, or Mazda 5.
Quality Assurance
Baldwin manufactures filtration products for automotive service applications, and PA4345 is specified with exact dimensions and OE cross-reference data to support accurate parts matching. Part number PA4345 should be matched to the listed Mazda fitment before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Mazda | 5 | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2015 | Mazda | 5 | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2014 | Mazda | 5 | 2.5L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2013 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF5013Z409U |
| 2013 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF5013Z409U |
| 2013 | Mazda | 3 | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2013 | Mazda | 3 Sport | 2.0L | L4 | N/A | OE Number : LF5013Z409U |
| 2013 | Mazda | 3 Sport | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2013 | Mazda | 5 | 2.5L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2012 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF5013Z409U |
| 2012 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF5013Z409U |
| 2012 | Mazda | 3 | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2012 | Mazda | 3 Sport | 2.0L | L4 | N/A | OE Number : LF5013Z40A |
| 2012 | Mazda | 3 Sport | 2.5L | L4 | N/A | OE Number : LF5013Z40A |
| 2012 | Mazda | 5 | 2.5L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2011 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF5013Z409U |
| 2011 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF5013Z409U |
| 2011 | Mazda | 3 | 2.5L | L4 | N/A | OE Number : LF5013Z409U |
| 2010 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2010 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2010 | Mazda | 3 | 2.5L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2010 | Mazda | 3 Sport | 2.0L | L4 | N/A | OE Number : LF5013Z40A |
| 2010 | Mazda | 3 Sport | 2.5L | L4 | N/A | OE Number : LF5013Z40A |
| 2010 | Mazda | 5 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2009 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40-A |
| 2009 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2009 | Mazda | 3 Sport | 2.0L | L4 | N/A | OE Number : LF5013Z40A |
| 2009 | Mazda | 5 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2008 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2008 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40-9U |
| 2008 | Mazda | 5 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2007 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2007 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2007 | Mazda | 5 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2006 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2006 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2006 | Mazda | 5 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2005 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2005 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2004 | Mazda | 3 | 2.0L | L4 | N/A | OE Number : LF50-13-Z40A |
| 2004 | Mazda | 3 | 2.3L | L4 | N/A | OE Number : LF50-13-Z40A |
