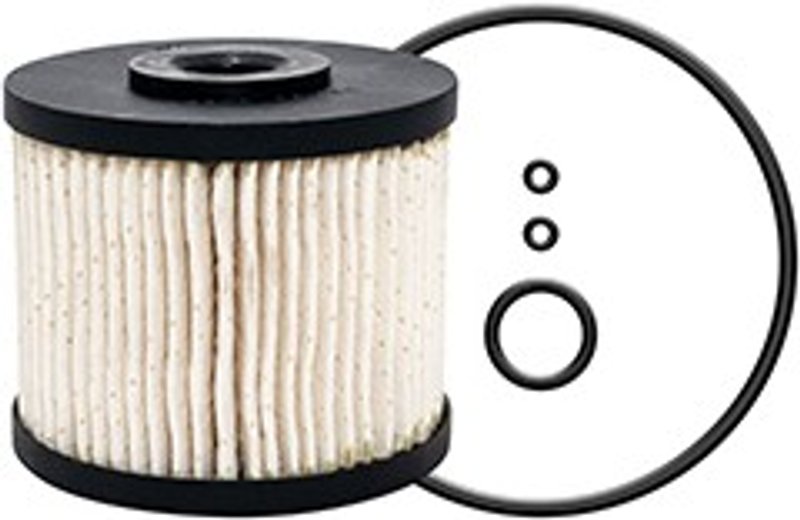

Baldwin PF46138 Fuel Filter

Overview of Baldwin PF46138 Fuel Filter

The Baldwin PF46138 fuel filter is designed for reliable fuel filtration in select heavy machinery models. Compatible with Kobelco SK230SR-3, SK260SR-3, and New Holland E260C SR, E230CSR, and E23 equipment, this filter helps maintain engine performance by removing contaminants from fuel.

• Compatible with Kobelco SK230SR-3, SK260SR-3, New Holland E260C SR, E230CSR, and E23 models
• Includes 2 attached grommets for secure installation
• Comes with 4 O-rings to ensure proper sealing
• Height: 2 27/32 inches (72.2 mm)
• Inside diameter: 13.9 mm (16-sep)
• Outside diameter: 3 5/32 inches (80.3 mm)
• Replaces Case VH23304EV040, VH23304EV041 and New Holland VH23304EV040 filters

Detailed Product Description

The Baldwin PF46138 fuel filter is engineered to meet the filtration requirements of specific Kobelco and New Holland heavy equipment models. With a height of 2 27/32 inches (72.2 mm) and an outside diameter of 3 5/32 inches (80.3 mm), this filter fits precisely within the fuel system. The inside diameter of 13.9 mm ensures proper fuel flow while filtering out impurities. The filter includes two attached grommets and four O-rings, which help maintain a secure and leak-free connection during operation. This part replaces OEM filters such as Case VH23304EV040 and VH23304EV041, as well as New Holland VH23304EV040, providing a direct replacement option for maintenance and repair.

Applications and Common Issues Addressed

• Prevents fuel contamination in Kobelco SK230SR-3 and SK260SR-3 excavators
• Maintains fuel system integrity in New Holland E260C SR and E230CSR models
• Reduces engine performance issues caused by clogged fuel filters
• Helps avoid fuel system leaks with included O-rings and grommets
• Supports consistent fuel flow to prevent engine stalling or hesitation

Installation Notes and Tips

When installing the Baldwin PF46138 fuel filter, ensure the grommets are properly seated to prevent leaks. Replace all four O-rings included with the filter to maintain a secure seal. Verify compatibility with your specific Kobelco or New Holland model before installation. Follow manufacturer guidelines for fuel system maintenance and disposal of the old filter.

Quality Assurance

Baldwin fuel filters are manufactured to meet industry standards for filtration efficiency and durability. The PF46138 is designed to provide consistent performance in demanding operating conditions. While no specific warranty information is provided, Baldwin products typically adhere to strict quality control processes to ensure reliability in the field.
