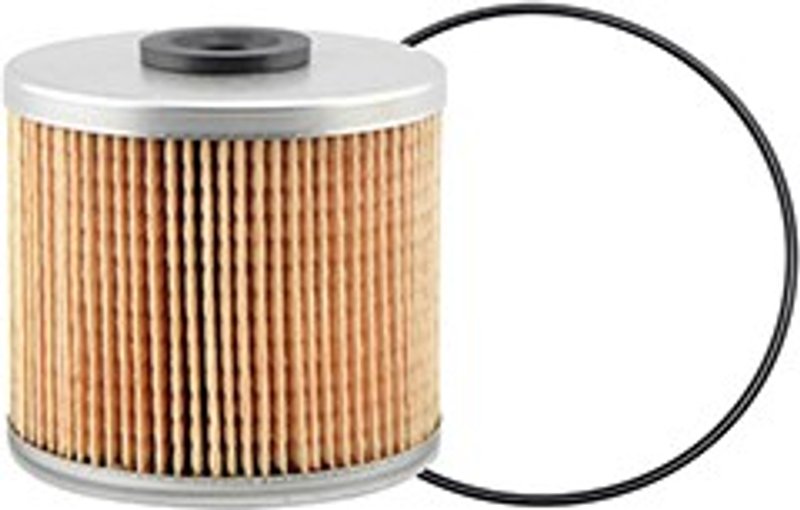

Baldwin PF506 Fuel Filter
| Brand | Baldwin PF506 |
|---|---|
| Fits | Ford Light-Duty Trucks |
| Furnished Gasket | [1] Included |
| Grommets | [1] Attached |
| Height | 2 9/16 |
| Height (mm) | 65.1 |
| Inside Diameter 1 | 16-Sep |
| Inside Diameter 1 (mm) | 14.3 |
| Outside Diameter 1 | 2 3/4 |
| Outside Diameter 1 (mm) | 69.9 |
| Remark 2 | One End |
| Replaces | Ford E5TZ-9365-B |
| Fits | Ford · 4 vehicles |
Fuel filter. Helps keep fuel clean for reliable engine performance.
Gasket included. Ready for installation with one furnished gasket.
Attached grommet. Includes one attached grommet for a secure seal.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PF506 Fuel Filter for Ford Light-Duty Trucks
The Baldwin PF506 is a fuel filter element for Ford light-duty trucks, including 1985 Bronco, F-150, F-250, and Ranger applications. Built to match the listed OE replacement reference, Baldwin PF506 supports clean fuel delivery in the vehicles shown below.
Key Features
- Fuel filter element for Ford light-duty truck applications
- Fits 1985 Ford Bronco, F-150, F-250, and Ranger
- Includes one furnished gasket and one attached grommet
- One-end design with 2 9/16 in. height
- Measures 14.3 mm inside diameter and 69.9 mm outside diameter
- Replaces Ford E5TZ-9365-B
Detailed Description
Baldwin PF506 is a direct-fit fuel filter element for 1985 Ford Bronco, 1985 Ford F-150, 1985 Ford F-250, and 1985 Ford Ranger models. The filter’s listed dimensions include a 65.1 mm height, 14.3 mm inside diameter, and 69.9 mm outside diameter, which are important reference points when matching the correct service part for Ford light-duty trucks. Baldwin PF506 also cross-references Ford E5TZ-9365-B for the same application.
For buyers searching for a 1985 Ford Bronco fuel filter element, 1985 Ford F-150 fuel filter replacement, or Baldwin PF506 Ford Ranger fuel filter, this part provides a straightforward OE-style service option. The included gasket and attached grommet support proper sealing at the filter interface.
What This Fuel Filter Helps Address
- Restricted fuel flow caused by a loaded or contaminated filter element
- Fuel system debris reaching the engine
- Hard starting related to fuel delivery issues
- Rough running from inadequate fuel filtration
- Service replacement for the specified Ford OE part number
Installation Notes and Tips
Verify the vehicle year, model, and fuel filter style before ordering. Confirm the filter dimensions and one-end configuration against the removed part to ensure proper fitment on the 1985 Ford Bronco, F-150, F-250, or Ranger. Inspect the sealing surfaces during installation and replace the filter at normal service intervals to maintain fuel system cleanliness.
Quality Assurance
Baldwin manufactures filtration products for automotive and heavy-duty service applications, with part-specific dimensions and OE reference data used to support accurate replacement selection. Baldwin PF506 is identified as a replacement for Ford E5TZ-9365-B.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1985 | Ford | Bronco | 5.0L | V8 | — | N/A | Fuel Filter: Element |
| 1985 | Ford | F-150 | 5.0L | V8 | — | N/A | Fuel Filter: Element |
| 1985 | Ford | F-250 | 5.0L | V8 | — | N/A | Fuel Filter: Element |
| 1985 | Ford | Ranger | 2.3L | L4 | GAS | N/A | Fuel Filter: Element |
