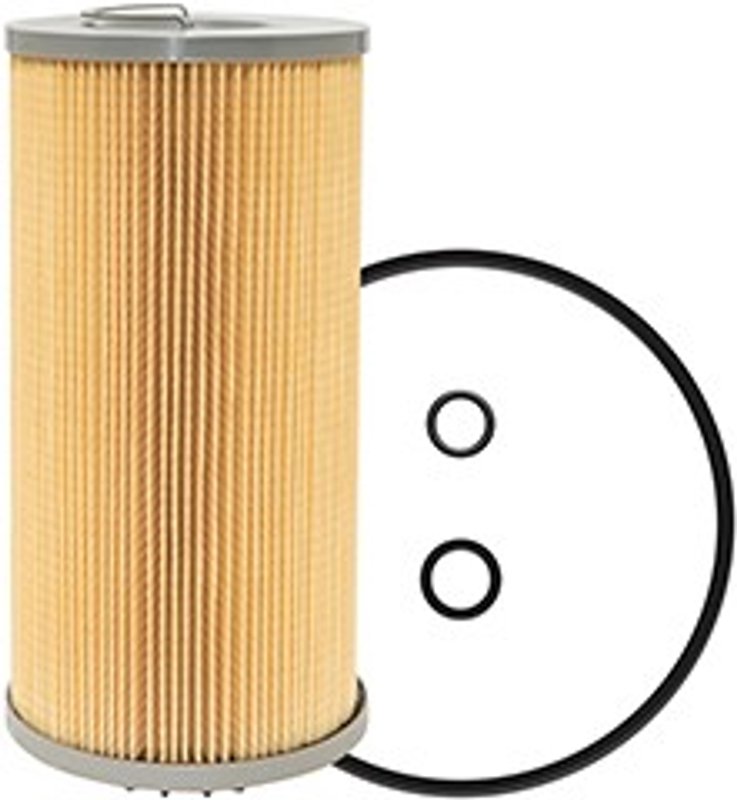

Baldwin PF7890-10 Fuel Water Separator Filter

Overview of Baldwin PF7890-10 Fuel Water Separator Filter

The Baldwin PF7890-10 is a fuel water separator filter designed to maintain fuel system integrity by removing water and contaminants. Engineered to fit Racor 1000fh series housings, this filter supports reliable fuel delivery for various diesel engines.

• Compatible with Racor 1000fh series housings
• Includes emergency by-pass tab for fuel flow protection
• Furnished with one gasket and one O-ring for secure sealing
• Height: 8 29/32 inches (226.2 mm)
• Inside diameters: 15.9 mm and 20.6 mm
• Outside diameter: 4 5/16 inches (109.5 mm)
• Replaces Racor 2020 series filters

Technical Details and Specifications

The PF7890-10 fuel water separator filter features precise dimensions to ensure proper fit and function within Racor 1000fh series housings. Its height measures 8 29/32 inches (226.2 mm), with inside diameters of 15.9 mm and 20.6 mm, and an outside diameter of 4 5/16 inches (109.5 mm). The filter includes an emergency by-pass tab that allows fuel flow in case of clogging, preventing engine fuel starvation. Additionally, the package contains one gasket and one O-ring to maintain a tight seal and prevent leaks during operation. This filter is related to Baldwin part numbers PF7890 and PF7890-30, differing primarily in media composition.

Applications and Problem Solving

• Prevents water contamination in diesel fuel systems
• Protects fuel injectors and pumps from debris and sediment
• Maintates fuel flow with emergency by-pass during filter clogging
• Compatible with Racor 1000fh series housings for marine and heavy-duty diesel engines
• Replaces Racor 2020 series filters for maintenance and upgrades

Installation Notes and Tips

When installing the Baldwin PF7890-10, ensure the gasket and O-ring are properly seated to avoid leaks. Verify compatibility with your Racor 1000fh series housing before installation. The emergency by-pass tab is a critical feature; do not modify or obstruct it. Follow manufacturer torque specifications for housing closure to maintain filter integrity.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for filtration efficiency and durability. The PF7890-10 is designed to provide consistent performance in demanding environments. Please consult Baldwin's official documentation for warranty details and coverage specific to this fuel water separator filter.
