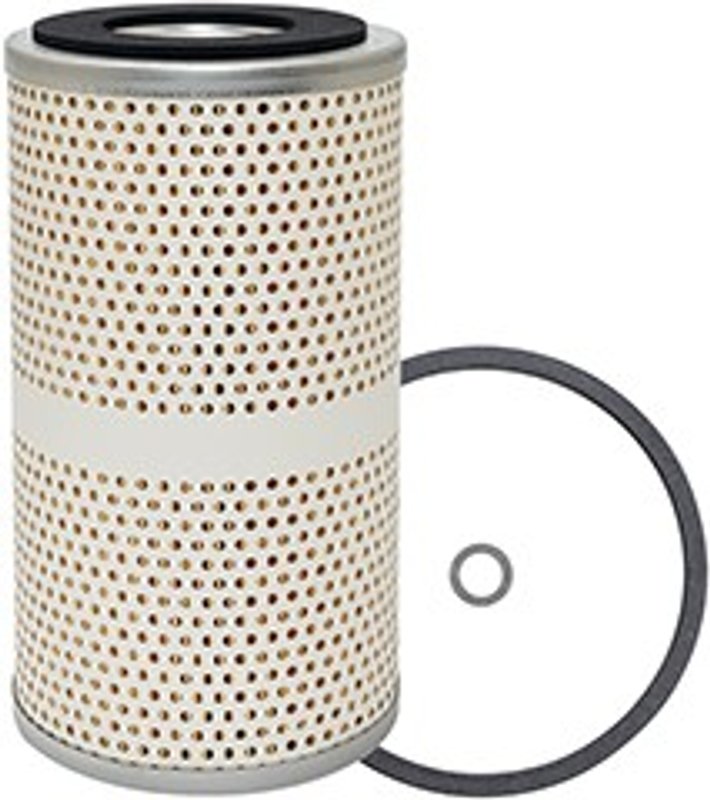

Baldwin PF846 Fuel Filter - Secondary
| Brand | Baldwin PF846 |
|---|---|
| Position | Secondary |
| Attached Gasket | [1] attached |
| Fits | Detroit diesel engines |
| Furnished Gasket | "{es1034}, {g143}" |
| Grommets | [2] attached |
| Height | 8 1/4 |
| Height (mm) | 209.6 |
| Inside Diameter 1 | 16-nov |
| Inside Diameter 1 (mm) | 17.5 |
| Notes | "to convert to spin-on, use {fb1310} base and {bf785}." |
| Outside Diameter 1 | 4 17/32 |
| Outside Diameter 1 (mm) | 115.1 |
| Replaces | Gmc 6437284 |
| Fits | —12 vehicles |
Fuel filter. Helps keep fuel clean for reliable engine performance.
Attached gasket. Includes a gasket for a simpler replacement.
Spin-on conversion note. Can be converted to spin-on with the specified base and filter.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Baldwin PF846 Fuel Filter for Detroit Diesel
The Baldwin PF846 is a fuel filter for Detroit Diesel engines, built for service applications that require a direct replacement with the correct gasket and grommet setup. It is a practical choice for maintenance on Detroit Diesel-powered GMC 6437284 replacement applications and related fuel system service.
Key Features
- Fuel filter for Detroit Diesel engines
- Part number PF846 for easy identification
- Attached gasket included on the filter
- Two attached grommets for sealing support
- Furnished gaskets listed as ES1034 and G143
- Dimensions: 8 1/4 in. height, 4 17/32 in. outside diameter, 16-Nov in. inside diameter
- Replaces GMC 6437284
Detailed Description
Baldwin PF846 is specified for Detroit Diesel engines and is built as a fuel filter replacement for service intervals where clean fuel delivery is critical. The filter includes an attached gasket and two attached grommets, and Baldwin lists furnished gaskets ES1034 and G143 for reference. For conversion needs, Baldwin notes that a spin-on setup can be achieved using FB1310 base and BF785. If you are searching for a Baldwin PF846 fuel filter for Detroit Diesel engines or a Baldwin PF846 replacement for GMC 6437284, this part provides the listed dimensions and sealing details needed for a proper match.
What It Helps Address
- Restricted fuel flow from a loaded or contaminated filter
- Fuel contamination entering Detroit Diesel engine systems
- Service replacement for worn filter sealing components
- Downtime caused by incorrect replacement part selection
- Need for a direct replacement for GMC 6437284
Installation Notes and Tips
Verify engine application and housing dimensions before installation. Confirm the attached gasket and grommets are seated correctly, and compare the filter height, outside diameter, and inside diameter to the original unit. For a spin-on conversion, Baldwin specifies FB1310 base and BF785. Use the part number PF846 during ordering and cross-check the replacement reference against the existing filter assembly.
Quality Assurance
Baldwin filters are built for heavy-duty filtration service and application-specific replacement needs. This part cross-references GMC 6437284 for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1987 | Freightliner | FLC112 | 9.3L | V8 | N/A | Secondary Element; OE Number : 6436719 |
| 1986 | Autocar | ACL | 9.3L | V8 | Secondary | 8 1/4 Inch Element; OE Number : 6436719 |
| 1986 | White | WCM | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1986 | White | WIM | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1985 | Autocar | ACL | 9.3L | V8 | Secondary | 8 1/4 Inch Element; OE Number : 6436719 |
| 1985 | White | WCM | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1985 | White | WHS | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1985 | White | WIL | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1985 | White | WIM | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1983 | Autocar | C / DC | 9.3L | V8 | Secondary | 8 1/4 Inch Element; OE Number : 6436719 |
| 1982 | White | WHS | 9.3L | V8 | N/A | Secondary Element; OE Number : 6437284 |
| 1981 | Freightliner | FLT086 | 9.3L | V8 | N/A | Secondary Element; OE Number : 6436719 |
