Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

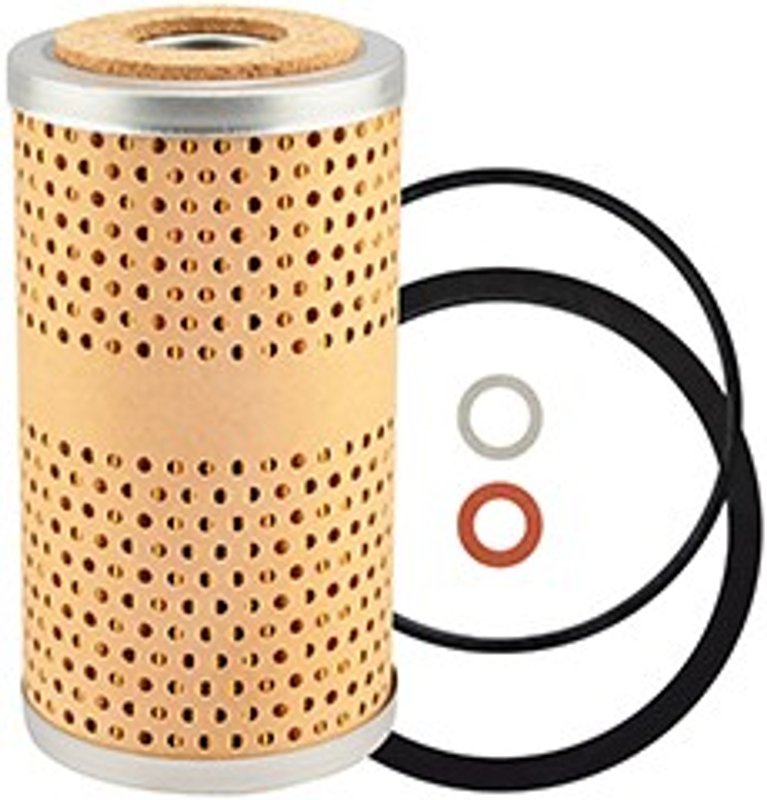

Baldwin PF916 Fuel Filter - Secondary
| Brand | Baldwin PF916 |
|---|---|
| Position | Secondary |
| Attached Gasket | [2] attached |
| Fits | "agchem, allis chalmers, case, fiat-allis, kato, vermeer equipmen |
| Furnished Gasket | [4] included |
| Height | 5 5/8 |
| Height (mm) | 142.9 |
| Inside Diameter 1 | 1 1/16 |
| Inside Diameter 1 (mm) | 27 |
| Notes | "to convert to spin-on, use {fb1301} base and {bf592} or {bf7774} |
| Optional Gasket | {es1032} |
| Outside Diameter 1 | 3 |
| Outside Diameter 1 (mm) | 76.2 |
| Replaces | Case 9980ab; detroit diesel 5192845 |
| Fits | Autocar · 3 vehicles |
Element-style design. Service replacement fuel filter for secondary filtration applications.
Sealing support. Attached and furnished gaskets help match the existing filter setup.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Filter Overview
Baldwin PF916 is a fuel filter element for heavy-duty fuel and engine systems. It is built around a 5 5/8-inch height and a 1 1/16-inch inside diameter, with attached and furnished gaskets for sealing support. This PF916 fuel filter is a direct reference point for service on select Autocar applications and cross-references Case 9980AB and Detroit Diesel 5192845.
Key Features
- Fuel filter element with a 5 5/8-inch overall height.
- 1 1/16-inch inside diameter and 3-inch outside diameter.
- Attached gaskets and furnished gaskets included in the design.
- Replacement reference for Case 9980AB and Detroit Diesel 5192845.
- Service part for secondary filtration applications.
Detailed Description
The Baldwin PF916 is a replacement fuel filter element used in secondary fuel filtration applications where proper sealing and consistent flow are important. Its dimensions and gasket configuration make it a practical service part for equipment and engine systems that use this filter style. For buyers searching for a Baldwin PF916 fuel filter, this part also serves as a reference for select Autocar ACL and Autocar C / DC applications, along with listed replacement numbers.
Baldwin filtration products are widely used in heavy-duty and industrial service environments, and the PF916 follows that service-focused approach with a filter element format rather than a spin-on design. The notes indicate that a spin-on conversion can be made with the specified base and filter components, which is useful when matching an existing service setup. If you are sourcing a PF916 for Autocar, the part number and dimensions should be matched carefully to the existing filter assembly.
What This Filter Helps Address
- Fuel contamination in secondary filtration circuits.
- Seal leakage at the filter interface.
- Incorrect filter sizing during replacement.
- Service mismatches when replacing an existing element-style filter.
Installation Notes and Tips
Verify the filter height, inside diameter, and gasket arrangement before installation. The notes specify a spin-on conversion option using FB1301 base with BF592 or BF7774, and the optional gasket is ES1032. Confirm the existing assembly and OE reference before ordering or installing the PF916.
Quality Assurance
Baldwin PF916 is built as a service replacement filter element for heavy-duty applications. It replaces Case 9980AB and Detroit Diesel 5192845, and it is listed for select Autocar secondary filter applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1986 | Autocar | ACL | 9.3L | V8 | Secondary | 5 5/8 Inch Element; OE Number : 5574961 |
| 1985 | Autocar | ACL | 9.3L | V8 | Secondary | 5 5/8 Inch Element; OE Number : 5574961 |
| 1983 | Autocar | C / DC | 9.3L | V8 | N/A | Secondary Element; OE Number : 5574961 |
