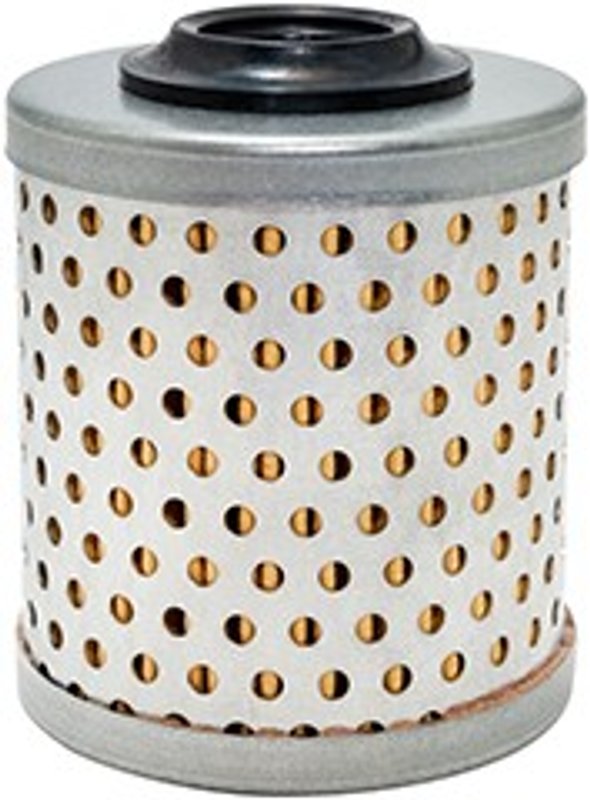

Baldwin PT23629 Power Steering Filter

Overview of Baldwin Power Steering Filter PT23629

The Baldwin PT23629 power steering filter is designed to maintain optimal hydraulic fluid cleanliness in Freightliner vehicles, including models 108SD, 114SD, 122SD, and Business Class M2 106. This filter features a bypass element and an inside-out flow direction to ensure efficient filtration and system protection.

• Contains bypass valve for continuous fluid flow
• Compatible with Freightliner 108SD, 114SD, 122SD, Business Class M2 106
• Includes one attached grommet for secure installation
• Height: 2 13/16 inches (71.4 mm)
• Inside diameter: 23/32 inches (18 mm)
• Outside diameter: 2 5/16 inches (58.9 mm)
• Replaces Freightliner part number 1417927000 and Fleetguard HF35387

Detailed Product Description

The Baldwin PT23629 power steering filter is engineered to fit specific Freightliner models such as the 108SD, 114SD, 122SD, and Business Class M2 106. Its design incorporates a bypass valve that allows hydraulic fluid to continue circulating even if the filter element becomes clogged, preventing potential damage to the power steering system. The filter operates with an inside-out flow direction, which enhances contaminant capture and extends the service life of the steering components. The attached grommet ensures a secure and leak-free fit during installation.

Applications and Problem Solving

• Prevents contamination-related wear in power steering systems of Freightliner 108SD, 114SD, 122SD, and Business Class M2 106
• Reduces risk of hydraulic fluid blockage with built-in bypass valve
• Helps maintain consistent steering performance under heavy-duty conditions
• Protects against premature failure of power steering pumps and valves
• Ensures reliable operation in commercial and fleet vehicles

Installation Notes and Tips

When installing the Baldwin PT23629 power steering filter, ensure the inside-out flow direction is followed for proper filtration. The attached grommet should be inspected for damage and seated correctly to prevent leaks. This filter replaces Freightliner part number 1417927000 and Fleetguard HF35387, making it a direct fit for compatible Freightliner models. Always verify compatibility with your specific vehicle model before installation.

Quality Assurance

Baldwin power steering filters are manufactured to meet stringent quality standards for durability and performance. The PT23629 is designed to provide reliable filtration and system protection in demanding commercial vehicle applications. While no specific warranty information is provided, Baldwin products are known for consistent quality and adherence to OEM specifications.
