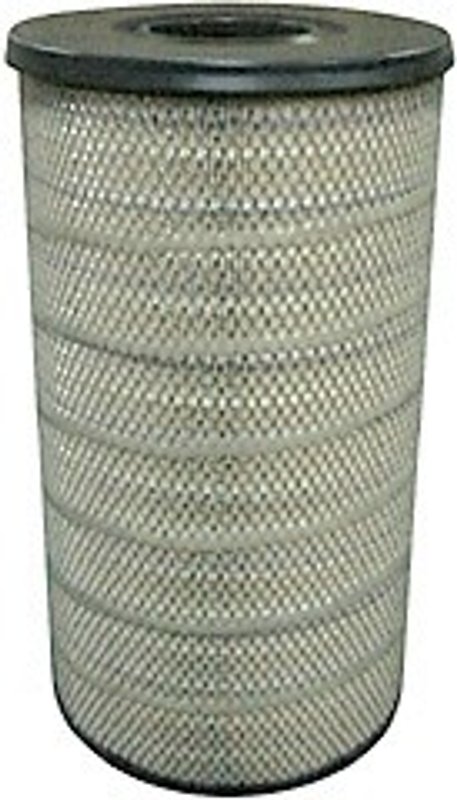

Baldwin RS4564 Engine Air Filter

Overview of Baldwin RS4564 Engine Air Filter for Peterbilt Trucks

The Baldwin RS4564 engine air filter is designed specifically for Peterbilt trucks, providing reliable air filtration to maintain engine performance. Featuring a 3 3/4 inch dust ejector hole and furnished with a G501-af gasket, this filter supports efficient airflow and contaminant removal.

• Compatible with Peterbilt trucks requiring engine air filters with inside-out flow direction
• Contains a 3 3/4 inch dust ejector hole for effective dust removal
• Furnished with G501-af gasket for secure sealing
• Dimensions: Height 21 11/32 inches (542.1 mm), Inside Diameter 6 13/16 inches (173 mm), Outside Diameter 11 3/8 inches (288.9 mm)
• Replaces Donaldson P542753 filter
• Designed for use with two filters per application

Detailed Product Description

The Baldwin RS4564 engine air filter is engineered to meet the filtration needs of Peterbilt trucks, ensuring clean air intake and protecting the engine from harmful particles. Its inside-out flow direction optimizes contaminant capture, while the 3 3/4 inch dust ejector hole facilitates efficient dust removal, extending filter life. The filter’s height of 21 11/32 inches and precise inside and outside diameters ensure a proper fit within the air intake system. Furnished with a G501-af gasket, the RS4564 provides a reliable seal to prevent unfiltered air bypass. This filter replaces the Donaldson P542753, making it a suitable aftermarket option for maintenance and replacement.

Applications and Problem Solving

• Prevents engine damage caused by dust and airborne contaminants
• Maintains optimal engine performance by ensuring clean airflow
• Reduces risk of clogged air intake systems in Peterbilt trucks
• Helps extend engine component life by filtering harmful particles
• Supports compliance with engine maintenance schedules requiring specific filter replacements

Installation Notes and Tips

The RS4564 engine air filter is designed for use in pairs per application, so ensure both filters are replaced simultaneously for balanced filtration. Verify the gasket type G501-af is properly seated to maintain an airtight seal. Installation should follow the inside-out flow direction indicated to ensure correct operation. Confirm dimensions match your Peterbilt truck’s air intake housing before installation.

Quality Assurance and Warranty

Baldwin filters are manufactured to meet industry standards for durability and filtration efficiency. The RS4564 is built to provide consistent performance under demanding conditions typical of Peterbilt truck operation. While specific warranty details are not provided, Baldwin products generally adhere to strict quality control processes to ensure reliability and longevity.
