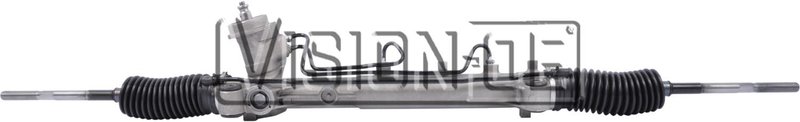

BBB Industries 101-0150 Rack and Pinion Assembly
| Brand | BBB Industries 101-0150 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 17.65 |
| Distance Between Mounting Holes (mm) | 448.31 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.813 |
| Input Shaft Length (mm) | 46.038 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | 11mm |
| Rack Length (In) | 50 |
| Rack Length (mm) | 1270 |
| Return Port Thread Size | 9.5mm |
| Turns Lock To Lock | 3 |
| Product line | Reman Rack and Pinion |
| Fits | Ford and Mazda · 8 vehicles |
Remanufactured unit. Restored for dependable steering performance.
Hydraulic design. Delivers responsive steering feel and control.
Bushings included. Helps simplify installation and reduce extra parts.
Cross-references 19320288 for the same application. See all 1.
Reman Rack and Pinion for Ford Escape and Mazda Tribute
BBB Industries Reman Rack and Pinion 101-0150 is a hydraulic steering gear assembly built for specific Ford Escape and Mazda Tribute applications. It includes inner tie rods and bushings, with a remanufactured rack housing that matches the original steering layout for direct replacement service.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Includes inner tie rods and bushings
- Rack length: 50 in. (1270 mm)
- Distance between mounting holes: 17.65 in. (448.31 mm)
- Input shaft diameter: 0.75 in. (19.05 mm)
- Input shaft length: 1.813 in. (46.038 mm)
- Pressure port thread size: 11 mm
- Return port thread size: 9.5 mm
- Turns lock to lock: 3
- Interchange reference: 19320288
Product Details
BBB Industries Reman Rack and Pinion 101-0150 is part of the Reman Rack and Pinion line, a product line focused on remanufactured steering components for service replacement. This hydraulic rack and pinion assembly is configured with two mounting holes, a 50-inch rack length, and inner tie rods already included. It is listed for 2004 Ford Escape with power steering, excluding P235 tires and vehicles built after 12/22/2003, as well as 2001-2004 Mazda Tribute with power steering and steel wheels. It also applies to 2001-2003 Ford Escape without power steering and excluding P235 tires. This part number, 101-0150, is a direct reference for shoppers searching for a reman rack and pinion for Ford Escape or Mazda Tribute steering repair.
Common Uses
- Replacing a worn or leaking steering rack
- Correcting steering play or loose on-center feel
- Addressing fluid loss from hydraulic steering components
- Restoring steering response after internal rack wear
- Servicing vehicles with damaged tie rod or rack bushings
Installation Notes
Verify steering system type, wheel/tire configuration, and build date before ordering. This assembly is hydraulic and uses 11 mm pressure and 9.5 mm return port threads, so line connections must match the vehicle’s original setup. Confirm the mounting-hole spacing, input shaft dimensions, and lock-to-lock travel against the removed unit before installation. Professional alignment is recommended after rack and pinion replacement.
Quality Assurance
BBB Industries remanufactures steering components to OE-style service specifications for replacement use. Part number 101-0150 is cataloged as a remanufactured rack and pinion assembly for the listed Ford Escape and Mazda Tribute applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Ford | Escape | N/A | Power Steering; Exc. P235 Tires; To 12/22/2003; Reman Rack and Pinion |
| 2004 | Mazda | Tribute | N/A | Power Steering; Steel Wheels; Reman Rack and Pinion |
| 2003 | Ford | Escape | N/A | Not compatible with power steering; excluding P235 tires.; Reman Rack and Pinion |
| 2003 | Mazda | Tribute | N/A | Power Steering; Steel Wheels; Reman Rack and Pinion |
| 2002 | Ford | Escape | N/A | Not compatible with power steering; excluding P235 tires.; Reman Rack and Pinion |
| 2002 | Mazda | Tribute | N/A | Power Steering; Steel Wheels; Reman Rack and Pinion |
| 2001 | Ford | Escape | N/A | Not compatible with power steering; excluding P235 tires.; Reman Rack and Pinion |
| 2001 | Mazda | Tribute | N/A | Power Steering; Steel Wheels; Reman Rack and Pinion |
| No rows match your filter. | ||||
