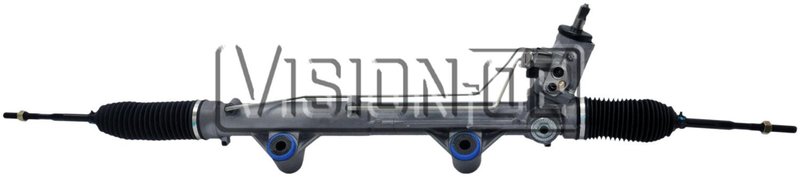

BBB Industries 101-0206 Rack and Pinion Assembly

Reman Rack and Pinion for Lincoln Aviator

BBB Industries Reman Rack and Pinion 101-0206 is a hydraulic steering gear assembly built for direct replacement service on select Lincoln Aviator models. It is remanufactured with inner tie rods and bushings included, and it is specified for power steering applications without an EVO component.

Key Features

• Brand: BBB Industries Reman Rack and Pinion
• Part number: 101-0206
• Remanufactured hydraulic rack and pinion assembly
• Inner tie rods included; outer tie rods not included
• Bushings included
• Input shaft diameter: 0.75 in. (19.05 mm)
• Input shaft length: 1.594 in. (40.48 mm)
• Rack length: 50.25 in. (1276.35 mm)
• Distance between mounting holes: 11.25 in. (285.75 mm)
• Pressure port thread size: 14 mm
• Return port thread size: 10 mm
• Turns lock to lock: 3.063

Detailed Description

This BBB Industries reman rack and pinion is engineered for 2003-2005 Lincoln Aviator power steering systems and is listed for vehicles supplied without an EVO component. The hydraulic design, mounting dimensions, and port thread sizes are provided to support accurate replacement selection, while the included inner tie rods and bushings help match the original steering gear configuration. Part number 101-0206 is also cross-referenced to 19320311 for the same application.

BBB Industries Reman Rack and Pinion product line focuses on remanufactured steering components for service replacement, giving technicians and parts buyers a cataloged option for restoring steering response on the Lincoln Aviator. If you are sourcing a reman rack and pinion for a 2003, 2004, or 2005 Lincoln Aviator, 101-0206 is the specified part number to verify against the vehicle’s steering setup.

What It Helps Address

• Excessive steering play or looseness
• Fluid leakage from the hydraulic steering gear
• Uneven or inconsistent steering response
• Worn internal rack components or tie rod interfaces
• Noise or binding associated with a failing rack and pinion assembly

Installation Notes and Tips

Confirm the vehicle is a 2003-2005 Lincoln Aviator with power steering and without an EVO component before ordering. Verify the input shaft dimensions, mounting-hole spacing, and pressure/return port thread sizes against the original unit. Because outer tie rods are not included, inspect related steering linkage parts during installation and transfer or replace any required external components as needed.

Quality Assurance

BBB Industries supplies remanufactured steering components for replacement service, and this rack and pinion is built as a remanufactured hydraulic assembly for the specified Lincoln Aviator applications. Part number 101-0206 is cataloged for direct application matching and interchange verification.
