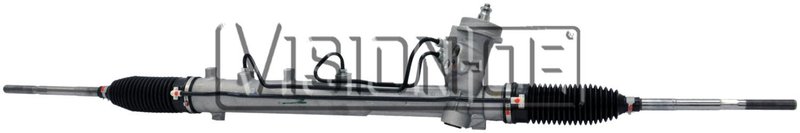

BBB Industries 101-0220 Rack and Pinion Assembly
| Brand | BBB Industries 101-0220 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 17.75 |
| Distance Between Mounting Holes (mm) | 450.85 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.813 |
| Input Shaft Length (mm) | 46.038 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | 11mm |
| Rack Length (In) | 50 |
| Rack Length (mm) | 1270 |
| Return Port Thread Size | 9.47mm |
| Turns Lock To Lock | 2.938 |
| Product line | Reman Rack and Pinion |
| Fits | Ford, Mercury, and Mazda · 15 vehicles |
Remanufactured unit. A reman rack and pinion assembly for a cost-conscious replacement.
Hydraulic steering. Delivers familiar steering assist with a traditional hydraulic design.
Tie rods included. Inner tie rods and bushings are included for a more complete assembly.
Cross-references 7L8Z-3504-D and 19320320 for the same application. See all 2.
Reman Rack and Pinion for Ford Escape and Mariner
BBB Industries Reman Rack and Pinion 101-0220 is a hydraulic steering gear assembly built for select Ford Escape, Mercury Mariner, and Mazda Tribute applications with power steering. This remanufactured rack and pinion includes inner tie rods and bushings, and it is specified for vehicles with P235 tires in the listed fitments.
The BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components for direct replacement use. Part number 101-0220 follows the original hydraulic rack layout and mounting dimensions for the confirmed applications, helping maintain steering response and factory-style fitment.
- Remanufactured hydraulic rack and pinion assembly
- Inner tie rods included; outer tie rods not included
- Bushings included
- Rack length: 50 in. (1270 mm)
- Distance between mounting holes: 17.75 in. (450.85 mm)
- Input shaft diameter: 0.75 in. (19.05 mm)
- Turns lock to lock: 2.938
- Pressure port thread size: 11 mm
- Return port thread size: 9.47 mm
Use BBB Industries 101-0220 when replacing a worn hydraulic steering rack on compatible Ford Escape, Mercury Mariner, or Mazda Tribute vehicles. This part cross-references OE-style numbers 7L8Z-3504-D and 19320320 for the same application.
Common Steering Problems This Part Addresses
- Excessive steering play or loose on-center feel
- Fluid leakage from the hydraulic rack assembly
- Uneven steering effort during turns
- Noise or binding from worn internal rack components
- Failed steering response caused by worn tie rod interfaces
Installation Notes
Verify hydraulic power steering configuration, tire size, and model-year fitment before installation. Confirm the input shaft diameter, port thread sizes, and mounting-hole spacing against the original unit to ensure proper alignment. A professional alignment is recommended after replacement of the rack and pinion assembly.
Quality Assurance
BBB Industries remanufactured steering components are rebuilt to restore original equipment-style function for direct replacement service. This part is listed for 2004-2007 Ford Escape, 2005-2007 Mercury Mariner, and 2005-2006 Mazda Tribute applications with the specified steering and tire configurations.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | Escape | 2.3L | L4 | GAS | N/A | Power Steering; w/ Hydraulic Power Steering P235 Tires; Reman Rack and Pinion |
| 2007 | Ford | Escape | 3.0L | V6 | GAS | N/A | Power Steering; w/ Hydraulic Power Steering P235 Tires; Reman Rack and Pinion |
| 2007 | Mercury | Mariner | 2.3L | L4 | GAS | N/A | Power Steering; w/ Hydraulic Power Steering P235 Tires; Reman Rack and Pinion |
| 2007 | Mercury | Mariner | 3.0L | V6 | GAS | N/A | Power Steering; w/ Hydraulic Power Steering P235 Tires; Reman Rack and Pinion |
| 2006 | Ford | Escape | 2.3L | L4 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2006 | Ford | Escape | 3.0L | V6 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2006 | Mazda | Tribute | — | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2006 | Mercury | Mariner | 2.3L | L4 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2006 | Mercury | Mariner | 3.0L | V6 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2005 | Ford | Escape | 2.3L | L4 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2005 | Ford | Escape | 3.0L | V6 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2005 | Mazda | Tribute | — | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2005 | Mercury | Mariner | 2.3L | L4 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2005 | Mercury | Mariner | 3.0L | V6 | GAS | N/A | Power Steering; w/ P235 Tires; Reman Rack and Pinion |
| 2004 | Ford | Escape | — | — | — | N/A | Power Steering; P235 Tires; From 12/22/2003; Reman Rack and Pinion |
