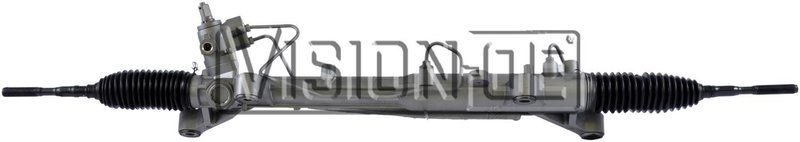

BBB Industries 101-0233 Rack and Pinion Assembly
Reman Rack and Pinion for Edge and MKX
BBB Industries Reman Rack and Pinion 101-0233 is a hydraulic steering gear assembly built for specific Ford Edge and Lincoln MKX applications with 22-inch wheels. It includes bushings and inner tie rods, and it is remanufactured to match the original hydraulic rack-and-pinion layout for direct replacement service.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Includes bushings and inner tie rods
- Pressure port thread size: M14x1.50
- Return port thread size: M16x1.50
- Rack length: 47.5 in. (1206.5 mm)
- Turns lock to lock: 2.88
- Distance between mounting holes: 20.25 in. (514.35 mm)
- Input shaft diameter: 1.139 in. (28.931 mm)
- Input shaft length: 1.833 in. (46.558 mm)
- Interchanges with 19320330 and BT4Z-3504-C
Product Details
BBB Industries Reman Rack and Pinion 101-0233 is part of the Reman Rack and Pinion line, a product family focused on remanufactured steering gear assemblies for OE-style service replacement. This unit is hydraulic, uses a two-mount-hole design, and is configured for vehicles listed with power steering and 22-inch wheels. Compatible applications include 2011-2015 Lincoln MKX, 2011-2014 Ford Edge, 2009-2010 Ford Edge, and 2009-2010 Lincoln MKX. This part cross-references 19320330 and BT4Z-3504-C for the same application.
Common Steering Issues Addressed
- Excessive steering play or loose on-center feel
- Fluid leakage from the rack and pinion assembly
- Uneven steering response during turns
- Noise or binding in the hydraulic steering gear
- Wear-related loss of steering precision
Installation Notes
Verify hydraulic port thread sizes, mounting-hole spacing, and input shaft dimensions before installation. This rack and pinion is intended for the listed Ford Edge and Lincoln MKX fitments with 22-inch wheels, so confirm the vehicle configuration against the notes shown for each model year. After installation, bleed the hydraulic steering system and perform a wheel alignment.
Quality Assurance
BBB Industries remanufactures steering components to restore original-fit service characteristics for the specified application. Confirm all fitment details against the vehicle before ordering to ensure proper installation on your Ford Edge or Lincoln MKX.
| Brand | BBB Industries |
|---|---|
| Part Number | 101-0233 |
| Position | Reman Rack and Pinion |
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 20.25 |
| Distance Between Mounting Holes (mm) | 514.35 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 1.139 |
| Input Shaft Diameter (mm) | 28.931 |
| Input Shaft Length (In) | 1.833 |
| Input Shaft Length (mm) | 46.558 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M14x1.50 |
| Rack Length (In) | 47.5 |
| Rack Length (mm) | 1206.5 |
| Return Port Thread Size | M16x1.50 |
| Turns Lock To Lock | 2.88 |
This part fits 13 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Lincoln | MKX | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2014 | Ford | Edge | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2014 | Lincoln | MKX | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2013 | Ford | Edge | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2013 | Lincoln | MKX | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2012 | Ford | Edge | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2012 | Lincoln | MKX | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2011 | Ford | Edge | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2011 | Lincoln | MKX | N/A | Power Steering; (Hydraulic Steering) w/ 22" Wheels; Reman Rack and Pinion |
| 2010 | Ford | Edge | N/A | Power Steering; w/ 22" Wheels; Reman Rack and Pinion |
| 2010 | Lincoln | MKX | N/A | Power Steering; w/ 22" Wheels; Reman Rack and Pinion |
| 2009 | Ford | Edge | N/A | Power Steering; w/ 22" Wheels; Reman Rack and Pinion |
| 2009 | Lincoln | MKX | N/A | Power Steering; w/ 22" Wheels; Reman Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
