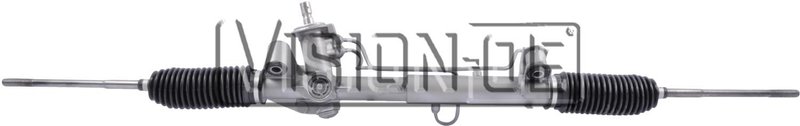

BBB Industries 101-0259 Rack and Pinion Assembly
| Brand | BBB Industries 101-0259 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 15.63 |
| Distance Between Mounting Holes (mm) | 397.002 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.726 |
| Input Shaft Diameter (mm) | 18.428 |
| Input Shaft Length (In) | 1.625 |
| Input Shaft Length (mm) | 41.275 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M18X1.50 |
| Rack Length (In) | 51.12 |
| Rack Length (mm) | 1298.448 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 2.75 |
| Product line | Reman Rack and Pinion |
| Fits | Ford · 4 vehicles |
Remanufactured assembly. A reman rack and pinion built for dependable steering performance.
Hydraulic design. Delivers smooth, responsive steering feel with fluid-assisted operation.
Inner tie rods included. Conveniently supplied with bushings for a more complete installation.
Cross-references 7T1Z-3A500-A for the same application. See all 1.
Reman Rack and Pinion for Transit Connect
BBB Industries Reman Rack and Pinion 101-0259 is a hydraulic steering gear assembly built for direct replacement in select Ford applications. It is compatible with 2010-2013 Ford Transit Connect models equipped with hydraulic power steering, making it a focused fitment for steering repair on this platform.
Key Features
- Remanufactured rack and pinion assembly from BBB Industries
- Hydraulic steering design
- Inner tie rods included
- Bushings included
- 2.75 turns lock to lock
- Pressure port thread size: M18x1.50
- Return port thread size: M16x1.50
- Rack length: 51.12 in. (1298.448 mm)
- Distance between mounting holes: 15.63 in. (397.002 mm)
- Input shaft diameter: 0.726 in. (18.428 mm)
- Input shaft length: 1.625 in. (41.275 mm)
Product Details
BBB Industries Reman Rack and Pinion 101-0259 is part of the Reman Rack and Pinion line, a remanufactured steering component range focused on OE-style replacement geometry and application-specific fitment. This unit is built for hydraulic power steering systems and includes inner tie rods and bushings, while outer tie rods are not included. It also cross-references Ford 7T1Z-3A500-A for the same application. For Ford Transit Connect steering service, 101-0259 provides the correct hydraulic rack configuration for 2010-2013 models listed in the fitment data.
Common Steering Issues This Part Addresses
- Excessive steering play or loose steering feel
- Fluid leakage from a worn hydraulic rack and pinion
- Uneven steering response caused by internal rack wear
- Noisy or rough steering operation during turning
- Failure of the original steering gear on Ford Transit Connect models
Installation Notes and Tips
Verify hydraulic port thread sizes, mounting-hole spacing, and input shaft dimensions before installation. This rack is specified for power steering applications with hydraulic power steering on 2010-2013 Ford Transit Connect models. Because outer tie rods are not included, confirm the condition of related steering linkage components during service and align the vehicle after installation.
Quality Assurance
BBB Industries remanufactured steering components are processed to restore functional performance for direct-fit replacement use. This part is identified as a remanufactured hydraulic rack and pinion assembly and is intended to match the listed Ford Transit Connect application and OE cross-reference 7T1Z-3A500-A.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Ford | Transit Connect | N/A | Power Steering; w/ Hydraulic Power Steering; Reman Rack and Pinion |
| 2012 | Ford | Transit Connect | N/A | Power Steering; w/ Hydraulic Power Steering; Reman Rack and Pinion |
| 2011 | Ford | Transit Connect | N/A | Power Steering; w/ Hydraulic Power Steering; Reman Rack and Pinion |
| 2010 | Ford | Transit Connect | N/A | Power Steering; w/ Hydraulic Power Steering; Reman Rack and Pinion |
