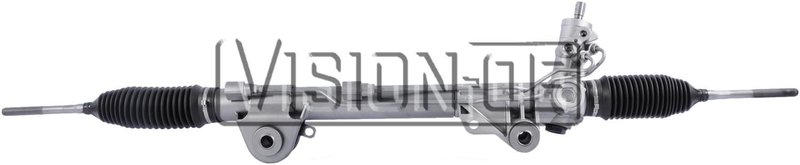

BBB Industries 101-0261 Rack and Pinion Assembly

Reman Rack and Pinion for Ford F-150

BBB Industries 101-0261 is a remanufactured hydraulic rack and pinion assembly for select 2011-2014 Ford F-150 trucks with power steering and hydraulic steering, without load-level trailer tow. It is built for direct replacement service and includes inner tie rods and bushings for a cleaner steering system refresh.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Includes inner tie rods and bushings
• 17 in. mounting hole spacing with 2 mounting holes
• Rack length: 55.75 in. (1416.05 mm)
• Turns lock to lock: 3.25
• Input shaft diameter: 0.729 in. (18.517 mm)
• Pressure port thread size: 0.569
• Return port thread size: 0.436

Product Details

BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components for service replacement applications. Part number 101-0261 is a hydraulic rack and pinion assembly for Ford F-150 steering repair, with inner tie rods included and outer tie rods not included. The unit measures 55.75 inches in rack length and uses a 17-inch distance between mounting holes, helping match the original steering geometry on the specified trucks. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2011-2014 Ford F-150, N/A; Power Steering; Hydraulic Steering, w/o Load Level Trailer Tow; Reman Rack and Pinion

Common Repair Applications

• Steering play or looseness at the wheel
• Hydraulic steering fluid leaks from the rack assembly
• Uneven or inconsistent steering response
• Worn internal rack components affecting road feel
• Noise or binding during steering input

Installation Notes

Verify hydraulic port sizes, input shaft dimensions, and mounting-hole spacing before installation. Transfer or replace any vehicle-specific components required by the application, and align the steering system after installation. Confirm the truck is equipped with power steering and hydraulic steering, and that it does not have load-level trailer tow equipment.

Quality Assurance

BBB Industries remanufactured steering components are processed for service replacement use and built to match the listed application details for the Ford F-150. Part number 101-0261 is specified for 2011-2014 Ford F-150 models with the noted steering configuration.
