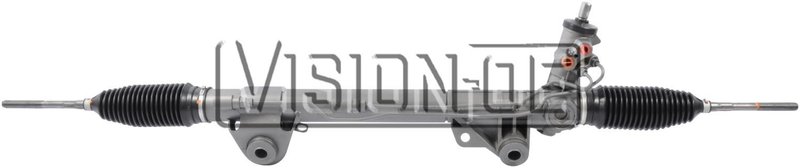

BBB Industries 101-0263 Rack and Pinion Assembly

Reman Rack and Pinion for Ford F-150

BBB Industries 101-0263 is a remanufactured hydraulic rack and pinion assembly for select 2011-2014 Ford F-150 trucks. It is built for power steering systems and includes inner tie rods and bushings for a direct replacement focused on steering response and fitment.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Fits 2011-2014 Ford F-150 with power steering and hydraulic steering
• Inner tie rods included; outer tie rods not included
• Bushings included for mounting support
• Rack length: 55.75 in. (1416.05 mm)
• Turns lock to lock: 3.25
• Input shaft diameter: 0.729 in. (18.517 mm)
• Pressure port thread size: 12 mm; return port thread size: 10 mm
• Distance between mounting holes: 11.25 in. (285.75 mm)

Detailed Description

BBB Industries Reman Rack and Pinion 101-0263 is engineered for the steering gear application used on 2011-2014 Ford F-150 models with hydraulic power steering. This remanufactured unit follows the original hydraulic layout and mounting dimensions, including a 55.75-inch rack length, two mounting holes, and the specified input shaft and port sizes for proper system connection. The BBB Industries Reman Rack and Pinion line focuses on replacement steering components that match the original vehicle configuration, making 101-0263 a practical choice when servicing steering play, leakage, or uneven steering feel on a Ford F-150.

This part cross-references Ford BL3Z-3504-D and 19382817 for the same application.

What It Is Used For

• Replacing a leaking hydraulic rack and pinion assembly
• Addressing excessive steering play or loose steering feel
• Restoring steering response on a 2011-2014 Ford F-150
• Correcting internal wear in the steering gear assembly
• Servicing a power steering system with original-style hydraulic routing

Installation Notes and Tips

Verify hydraulic steering configuration, mounting-hole spacing, input shaft dimensions, and port thread sizes before installation. Transfer or inspect related steering components as needed, and perform a professional alignment after the rack and pinion assembly is installed. For best results, flush the power steering system if contamination or fluid breakdown is present.

Quality Assurance

BBB Industries remanufactures steering components to OE-style specifications for direct replacement use. Part number 101-0263 is built as a remanufactured hydraulic rack and pinion assembly for the listed Ford F-150 applications.
