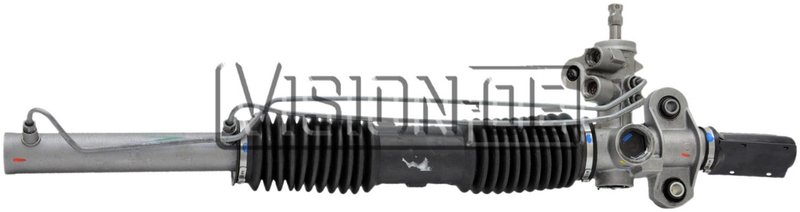

BBB Industries 102-0131 Rack and Pinion Assembly
| Brand | BBB Industries 102-0131 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 3.75 |
| Distance Between Mounting Holes (mm) | 95.25 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.875 |
| Input Shaft Length (mm) | 47.625 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M18x1.50 |
| Rack Length (In) | 34.75 |
| Rack Length (mm) | 882.65 |
| Return Port Thread Size | M16x1.50 |
| Turns Lock To Lock | 3.125 |
| Product line | Reman Rack and Pinion |
| Fits | Chrysler and Dodge · 11 vehicles |
Remanufactured unit. Restores steering performance with a reman rack and pinion assembly.
Hydraulic design. Delivers responsive steering feel with a hydraulic rack and pinion setup.
Inner tie rods included. Comes ready with bushings for a more complete installation.
Cross-references 19320368 for the same application. See all 1.
Reman Rack and Pinion for Chrysler and Dodge
BBB Industries Reman Rack and Pinion 102-0131 is a hydraulic steering gear assembly built for select Chrysler and Dodge vehicles with standard steering. It is a direct-fit remanufactured replacement for applications such as the 1996-1997 Chrysler Concorde, 1996-1997 Chrysler Intrepid, 1996-1997 Chrysler LHS, 1996-1997 Dodge Intrepid, and 1996 Chrysler New Yorker.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Inner tie rods included
- Bushings included
- Pressure port thread size: M18x1.50
- Return port thread size: M16x1.50
- Rack length: 34.75 in. (882.65 mm)
- Turns lock to lock: 3.125
- Input shaft diameter: 0.75 in. (19.05 mm)
- Input shaft length: 1.875 in. (47.625 mm)
- Distance between mounting holes: 3.75 in. (95.25 mm)
Product Details
BBB Industries Reman Rack and Pinion 102-0131 is part of the Reman Rack and Pinion line, a remanufactured steering component range focused on OE-style replacement fitment and hydraulic steering applications. This assembly is specified for standard steering (SBA) configurations and uses the listed port sizes, mounting dimensions, and rack length to match the original steering geometry on compatible Chrysler Concorde, Chrysler Intrepid, Chrysler LHS, Dodge Intrepid, and Chrysler New Yorker models.
This part cross-references 19320368 for the same application.
Common Issues This Part Can Address
- Excessive steering play or looseness
- Hydraulic fluid leaks from the rack and pinion assembly
- Uneven or inconsistent steering response
- Worn internal steering components
- Noisy steering operation caused by rack wear
Installation Notes
Verify hydraulic port thread sizes, mounting-hole spacing, input shaft dimensions, and rack length before installation. This assembly is for power steering with standard steering (SBA) and should be matched to the vehicle’s original steering configuration. After installation, bleed the hydraulic system and perform a professional alignment to restore proper steering feel and tire wear.
Quality Assurance
BBB Industries remanufactures steering components to meet application-specific replacement requirements for hydraulic rack and pinion systems. Confirm fitment by year, make, model, and steering configuration before ordering.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1997 | Chrysler | Concorde | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1997 | Chrysler | Intrepid | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1997 | Chrysler | LHS | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1997 | Dodge | Intrepid | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1997 | Eagle | Vision | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Chrysler | Concorde | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Chrysler | Intrepid | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Chrysler | LHS | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Chrysler | New Yorker | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Dodge | Intrepid | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| 1996 | Eagle | Vision | Power Steering with Standard Steering (SBA); Reman Rack and Pinion |
| No rows match your filter. | |||
