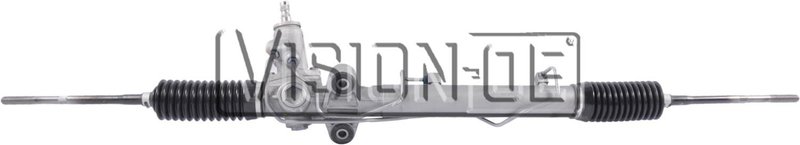

BBB Industries 102-0162 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion Assembly

The BBB Industries Reman Rack and Pinion Assembly 102-0162 is designed for precise steering control in select Chrysler, Dodge, and Mitsubishi vehicles. This remanufactured hydraulic rack and pinion unit includes essential components to restore steering performance in models like the Eclipse, Galant, Sebring, and Stratus.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete installation
• Rack length: 49.813 inches (1265.238 mm)
• Input shaft diameter: 0.75 inches (19.05 mm), length: 1.5 inches (38.1 mm)
• Distance between mounting holes: 3.31 inches (84.074 mm) with 2 mounting holes
• Pressure port thread size: M16x1.50; return port thread size: M14x1.50
• Turns lock to lock: 3.125

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries offers remanufactured steering gear assemblies that meet OEM specifications. This product line focuses on restoring original steering feel and reliability by reconditioning core components and including necessary hardware such as bushings and inner tie rods. The 102-0162 part number is part of this line, providing a cost-effective solution for hydraulic steering systems in compatible vehicles.

Technical Specifications and Features

This rack and pinion assembly is designed for hydraulic steering systems and includes bushings and inner tie rods, but does not include outer tie rods. The input shaft measures 0.75 inches in diameter and 1.5 inches in length, ensuring compatibility with the steering column. The rack length of nearly 50 inches supports proper steering geometry. Mounting is secured with two holes spaced 3.31 inches apart. Thread sizes for pressure and return ports are M16x1.50 and M14x1.50 respectively, matching factory hydraulic line fittings. The steering ratio is defined by 3.125 turns lock to lock, providing responsive steering control.

Compatible Vehicles and Common Applications

• Chrysler Sebring hydraulic steering repair
• Dodge Stratus rack and pinion replacement
• Mitsubishi Eclipse steering gear assembly upgrade
• Mitsubishi Galant hydraulic steering system maintenance
• Resolving steering play, leaks, or uneven steering effort in compatible models

Installation Notes and Tips

Ensure the vehicle’s hydraulic steering system is properly flushed before installation to prevent contamination. Verify that the mounting hole spacing and input shaft dimensions match the vehicle’s specifications. Since outer tie rods are not included, inspect and replace them separately if needed. Properly torque mounting bolts and bleed the hydraulic system after installation to avoid steering issues.

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 102-0162 part number is backed by BBB Industries’ quality control processes to ensure durability and performance. Warranty coverage details should be confirmed with the distributor or installer.
