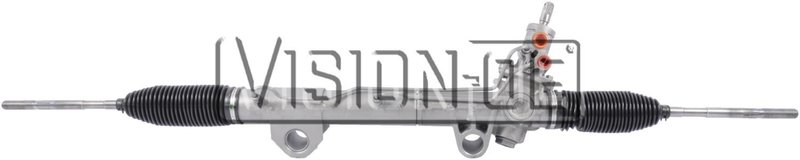

BBB Industries 102-0170 Rack and Pinion Assembly
| Brand | BBB Industries 102-0170 |
|---|---|
| "Hydraulic, Electric or Manual Steering" | Hydraulic |
| Bushings Included | No |
| Distance Between Front Mounting Holes (In) | 11.5 |
| Distance Between Front Mounting Holes (mm) | 294 |
| Distance Between Mounting Holes (In) | 11.625 |
| Distance Between Mounting Holes (mm) | 295.275 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rod Length (In) | 14.2 |
| Inner Tie Rod Length (mm) | 363 |
| Inner Tie Rod Size | M18x1.50 |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.70 |
| Input Shaft Diameter (mm) | 18 |
| Input Shaft Length (In) | 1.9 |
| Input Shaft Length (mm) | 49 |
| Installation Kit Included | Yes |
| New or Remanufactured | Manufactured New |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Attachment Type | O-Ring |
| Pressure Port Size | M18x1.50 |
| Pressure Port Thread Size | M18X1.50 |
| Rack Length (In) | 54.9 |
| Rack Length (mm) | 1395 |
| Return Port Attachment Type | O-Ring |
| Return Port Size | M20x1.50 |
| Return Port Thread Size | M20X1.50 |
| Turns Lock To Lock | 3 |
| Product line | Reman Rack and Pinion |
| Fits | Dodge · 14 vehicles |
Reman rack and pinion. Hydraulic steering assembly built as a direct replacement.
Installation kit included. Helps simplify the swap with the needed hardware.
Inner tie rods included. Adds key steering components in one complete assembly.
Cross-references 19320395, 52110333AI and 52110487AC for the same application. See all 5.
Hydraulic Rack and Pinion for Ram Steering
BBB Industries Reman Rack and Pinion 102-0170 is a hydraulic rack and pinion assembly for select Dodge Ram trucks with power steering. It is built for direct replacement service on Ram 1500, Ram 2500, and Ram 3500 applications listed below, including the 2006 Dodge Ram 1500 Mega Cab configuration.
Key Features
- Hydraulic rack and pinion assembly for power steering systems
- BBB Industries Reman Rack and Pinion product line
- Manufactured new construction
- Inner tie rods included
- Installation kit included
- Input shaft diameter: 0.70 in. (18 mm)
- Rack length: 54.9 in. (1395 mm)
- Turns lock to lock: 3
- Pressure port: M18x1.50 O-ring
- Return port: M20x1.50 O-ring
Product Details
This BBB Industries rack and pinion assembly is specified for hydraulic steering systems and uses O-ring pressure and return port connections. The unit measures 54.9 inches in rack length, has a 0.70-inch input shaft diameter, and includes inner tie rods with M18x1.50 sizing. Front mounting hole spacing is listed at 11.5 inches, with 2 mounting holes total. BBB Industries part number 102-0170 is a direct-fit steering replacement for select Dodge Ram 1500, Ram 2500, and Ram 3500 trucks with power steering.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Vehicle Fitment
- Fits 2006 Dodge Ram 1500, N/A, Power Steering; Mega Cab; Reman Rack and Pinion
- Fits 2003-2006 Dodge Ram 2500, N/A, Compatible with vehicles equipped with power steering; Reman Rack and Pinion
- Fits 2003-2006 Dodge Ram 3500, N/A, Compatible with vehicles equipped with power steering; Reman Rack and Pinion
- Fits 2002-2005 Dodge Ram 1500, N/A, Compatible with vehicles equipped with power steering; Reman Rack and Pinion
Common Steering Issues Addressed
- Excessive steering play or loose steering feel
- Fluid leakage from the rack and pinion assembly
- Hard steering or inconsistent hydraulic assist
- Worn internal steering components causing poor road control
- Noise or binding during steering input
Installation Notes
Verify hydraulic port thread sizes, mounting hole spacing, and input shaft dimensions before installation. This assembly is listed with inner tie rods included, while outer tie rods are not included. Confirm vehicle-specific power steering configuration and match the application to the exact Ram model year and notes shown above. After installation, bleed the hydraulic system and check for leaks, steering wheel centering, and proper toe alignment.
Quality Assurance
BBB Industries Reman Rack and Pinion 102-0170 is manufactured new and built for the listed Dodge Ram steering applications. The BBB Industries reman rack and pinion product line is focused on replacement steering components for service use on covered vehicles.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Dodge | Ram 1500 | Extended Crew Cab Pickup | RWD | 5.7L | V8 | N/A | Power Steering; (Mega Cab); Reman Rack and Pinion |
| 2006 | Dodge | Ram 1500 | Extended Crew Cab Pickup | RWD | 4.7L | V8 | N/A | Power Steering; (Mega Cab); Reman Rack and Pinion |
| 2006 | Dodge | Ram 2500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2006 | Dodge | Ram 3500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2005 | Dodge | Ram 1500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2005 | Dodge | Ram 2500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2005 | Dodge | Ram 3500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2004 | Dodge | Ram 1500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2004 | Dodge | Ram 2500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2004 | Dodge | Ram 3500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2003 | Dodge | Ram 1500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2003 | Dodge | Ram 2500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2003 | Dodge | Ram 3500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2002 | Dodge | Ram 1500 | — | RWD | — | — | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
