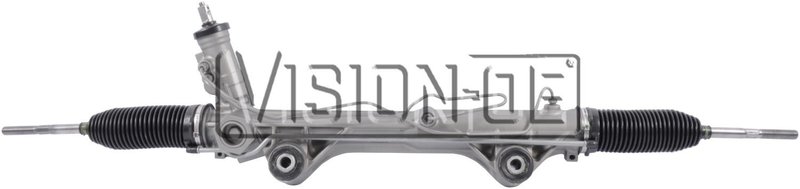

BBB Industries 102-0178 Rack and Pinion Assembly
| Brand | BBB Industries 102-0178 |
|---|---|
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 13.38 |
| Distance Between Mounting Holes (mm) | 339.852 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 1.563 |
| Input Shaft Length (mm) | 39.688 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M18X1.50 |
| Rack Length (In) | 51 |
| Rack Length (mm) | 1295.4 |
| Return Port Thread Size | M20X1.50 |
| Turns Lock To Lock | 3.375 |
| Product line | Reman Rack and Pinion |
| Fits | Dodge · 3 vehicles |
Remanufactured unit. A cost-conscious replacement for steering gear service.
Hydraulic design. Delivers familiar power-assisted steering response.
Inner tie rods included. Simplifies the steering assembly replacement.
Cross-references 19320403 for the same application. See all 1.
Reman Rack and Pinion for Durango
BBB Industries Reman Rack and Pinion 102-0178 is a hydraulic steering gear assembly built for direct replacement service on select Dodge Durango applications. It includes inner tie rods and bushings, with the rack configured for power steering use and 16mm tie rods on the listed fitment.
The BBB Industries Reman Rack and Pinion product line focuses on remanufactured steering components that match the original hydraulic layout and mounting dimensions needed for proper steering response. This unit measures 51 inches in rack length, has 2 mounting holes spaced 13.38 inches apart, and uses M18x1.50 pressure port and M20x1.50 return port threads.
- Remanufactured hydraulic rack and pinion assembly
- Includes inner tie rods and bushings
- Rack length: 51 in. (1295.4 mm)
- Turns lock to lock: 3.375
- Input shaft diameter: 0.688 in. (17.463 mm)
- Pressure port thread size: M18x1.50
- Return port thread size: M20x1.50
- Interchanges with 19320403
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Detailed Application Information
Compatible With 2004-2006 Dodge Durango, power steering; w/ 16mm tie rods (rack tagged 52113237). Use BBB Industries 102-0178 when replacing a worn or leaking hydraulic rack and pinion on the listed Dodge Durango models. The 2004, 2005, and 2006 Dodge Durango fitment is specific to the noted steering configuration, so matching the rack tag and tie rod size is important before installation.
What This Part Helps Address
- Steering play or looseness at the wheel
- Hydraulic fluid leakage from the rack assembly
- Uneven or inconsistent steering response
- Noise or binding during steering input
- Wear in the original rack and inner tie rod components
Installation Notes and Tips
Verify the rack tag number, tie rod size, and port thread sizes before installation to confirm the correct application for your Dodge Durango. Inspect hydraulic lines, mounting points, and steering linkage condition during replacement, and align the front end after the rack is installed. Confirm the input shaft dimensions and mounting hole spacing against the original unit to ensure proper fitment.
Quality Assurance
BBB Industries supplies this remanufactured rack and pinion as a service replacement steering component built to match the listed hydraulic application and OE-style mounting requirements.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Dodge | Durango | N/A | Power Steering; w/ 16mm Tie Rods (Rack Tagged 52113237); Reman Rack and Pinion |
| 2005 | Dodge | Durango | N/A | Power Steering; w/ 16mm Tie Rods (Rack Tagged 52113237); Reman Rack and Pinion |
| 2004 | Dodge | Durango | N/A | Power Steering; w/ 16mm Tie Rods (Rack Tagged 52113237); Reman Rack and Pinion |
