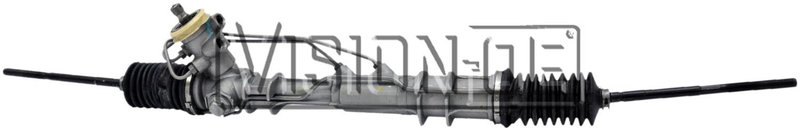

BBB Industries 103-0101 Rack and Pinion Assembly

Reliable Steering Solution for Buick, Chevrolet, Oldsmobile, and Pontiac

The BBB Industries Reman Rack and Pinion Assembly 103-0101 offers a remanufactured hydraulic steering component designed for precise control and durability. Engineered to fit select Buick, Chevrolet, Oldsmobile, and Pontiac models, this rack and pinion assembly ensures consistent steering performance.

• Remanufactured hydraulic rack and pinion assembly
• Includes inner tie rods for streamlined installation
• Input shaft diameter: 0.75 inches (19.05 mm)
• Input shaft length: 1 inch (25.4 mm)
• Rack length: 46.5 inches (1181.1 mm)
• Pressure and return port thread size: M16x1.50
• Turns lock to lock: 2.938
• Compatible with Buick Citation, Chevrolet Omega, Oldsmobile Phoenix, and Pontiac Skylark

About the BBB Industries Reman Rack and Pinion Product Line

The Reman Rack and Pinion line by BBB Industries focuses on remanufactured steering components that meet OEM specifications. This product line provides a cost-effective alternative to new parts while maintaining quality and reliability. The 103-0101 assembly is part of this line, offering hydraulic steering functionality with included inner tie rods to support proper steering geometry.

Detailed Product Description

This remanufactured rack and pinion assembly features a hydraulic design suitable for vehicles requiring power-assisted steering. The input shaft measures 0.75 inches in diameter and 1 inch in length, ensuring compatibility with the steering column interface. The rack length of 46.5 inches supports the steering system's range of motion, with 2.938 turns lock to lock for responsive handling. Both pressure and return ports use M16x1.50 thread sizes, matching factory specifications for fluid connections. Inner tie rods are included to facilitate installation, while bushings and outer tie rods are not included.

Common Applications and Issues Addressed

• Restores steering precision in Buick Citation and Chevrolet Omega models
• Replaces worn or leaking rack and pinion units in Oldsmobile Phoenix vehicles
• Eliminates excessive play or steering wheel vibration in Pontiac Skylark
• Addresses hydraulic steering fluid leaks and pressure loss
• Improves steering response and control for safer driving

Installation Notes and Tips

Ensure compatibility with your vehicle’s make and model before installation. The included inner tie rods simplify the replacement process, but outer tie rods and bushings must be reused or replaced separately. Proper alignment after installation is recommended to maintain steering accuracy and tire wear. Verify that the pressure and return port thread sizes (M16x1.50) match your vehicle’s hydraulic lines.

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 103-0101 part number is backed by BBB Industries’ quality control processes to ensure reliable performance. Warranty coverage details should be confirmed with the point of purchase or BBB Industries directly.
