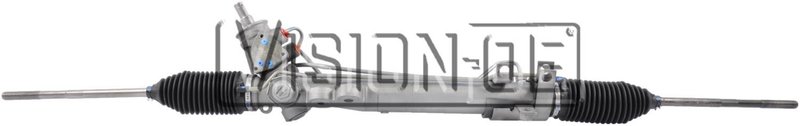

BBB Industries 103-0122 Rack and Pinion Assembly

Reman Rack and Pinion for Cadillac Steering Repair

BBB Industries Reman Rack and Pinion 103-0122 is a hydraulic steering gear assembly for select Cadillac applications. It is built for direct replacement service on 1993-1995 Cadillac Allante, Eldorado, Seville, and 1994-1995 Cadillac DeVille models with power steering and without the EVO component.

Key Features

• Remanufactured hydraulic rack and pinion assembly
• Inner tie rods included; outer tie rods not included
• Rack length: 49.25 in. (1250.95 mm)
• Input shaft diameter: 0.688 in. (17.463 mm)
• Input shaft length: 1 in. (25.4 mm)
• Turns lock to lock: 2.688
• Pressure and return port thread size: M16 x 1.50
• Two mounting holes with 1.69 in. (42.926 mm) spacing
• BBB Industries Reman Rack and Pinion line for steering replacement service

Detailed Description

BBB Industries 103-0122 is a remanufactured hydraulic rack and pinion assembly engineered for steering system replacement on select Cadillac vehicles. This unit is specified for 1994-1995 Cadillac DeVille, 1993-1995 Cadillac Eldorado, 1993-1995 Cadillac Seville, and 1993 Cadillac Allante applications with power steering and without the EVO component. The assembly includes inner tie rods and uses M16 x 1.50 pressure and return ports, along with a 0.688-inch input shaft diameter and 49.25-inch rack length for application-specific fitment.

The BBB Industries Reman Rack and Pinion product line focuses on remanufactured steering components built for direct replacement service. Part number 103-0122 is also referenced by OE cross-reference 19320457 for the same application. Use this part when servicing Cadillac steering systems that require a hydraulic rack and pinion assembly with the listed mounting and port specifications.

What This Part Helps Address

• Excessive steering play or loose steering feel
• Fluid leakage from the rack and pinion assembly
• Hard steering or inconsistent hydraulic assist
• Internal wear in the steering gear assembly
• Noise or binding during steering input

Installation Notes and Tips

Verify the vehicle is equipped with power steering and does not use the EVO component before ordering. Confirm rack length, mounting-hole spacing, input shaft dimensions, and port thread size against the original unit. Outer tie rods are not included, so inspect the existing steering linkage and related hydraulic lines during installation. After installation, perform a professional alignment and bleed the power steering system according to service procedures.

Quality Assurance

BBB Industries supplies remanufactured steering components for replacement service, and this rack and pinion is built to match the listed application requirements for Cadillac DeVille, Eldorado, Seville, and Allante models. Part number 103-0122 is a direct-fit hydraulic steering assembly for the specified vehicles.
