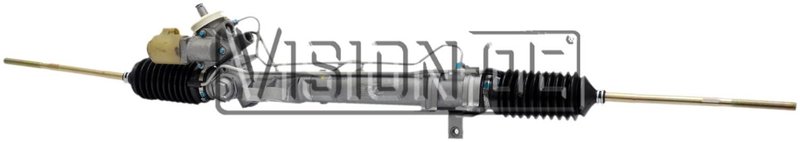

BBB Industries 103-0122P Rack and Pinion Assembly
| Brand | BBB Industries 103-0122P |
|---|---|
| Bushings Included | No |
| Distance Between Mounting Holes (In) | 1.69 |
| Distance Between Mounting Holes (mm) | 42.926 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 1 |
| Input Shaft Length (mm) | 25.4 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16x1.50 |
| Rack Length (In) | 49.25 |
| Rack Length (mm) | 1250.95 |
| Return Port Thread Size | M16x1.50 |
| Turns Lock To Lock | 2.688 |
| Product line | Reman Rack and Pinion |
| Fits | Cadillac · 3 vehicles |
Remanufactured design. A reman rack and pinion built for hydraulic steering systems.
Inner tie rods included. Supplied as a steering gear assembly for service replacement.
OE-style fitment. Built to match listed mounting and port dimensions.
Cross-references 19320458 for the same application. See all 1.
Remanufactured Steering Rack Overview
BBB Industries 103-0122P is a remanufactured hydraulic rack and pinion assembly built for power steering applications. It includes inner tie rods and is specified with EVO component notes for the listed Cadillac fitments.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Inner tie rods included for a complete steering gear service
- Two mounting holes with M16x1.50 pressure and return port threads
- 49.25-inch rack length and 2.688 turns lock to lock
- BBB Industries 103-0122P for direct application matching
Detailed Description
This BBB Industries rack and pinion assembly is engineered for hydraulic power steering systems and matches the listed 1993 Cadillac applications. The unit uses a 17.463 mm input shaft diameter, a 25.4 mm input shaft length, and a 42.926 mm mounting-hole spacing, helping ensure dimensional alignment during replacement. BBB Industries 103-0122P is a practical choice when replacing a worn steering gear on a Cadillac Allante, Eldorado, or Seville.
Remanufactured construction makes this steering rack suitable for restoring steering response when the original unit shows internal wear, leakage, or excessive play. This part cross-references 19320458 for the same application.
What It Is Used For
- Steering fluid leakage from the rack housing or ports
- Excessive steering play or delayed steering response
- Uneven steering effort caused by internal rack wear
- Noisy or inconsistent hydraulic steering operation
Installation Notes and Tips
Verify hydraulic port thread size, mounting-hole spacing, and input shaft dimensions before installation. Confirm the vehicle uses the listed power steering and EVO component configuration. After installation, inspect the hydraulic system for leaks and bleed the steering system according to service procedures.
Quality Assurance
BBB Industries supplies remanufactured steering components for replacement applications, and this rack and pinion is built to match the listed fitment requirements.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1993 | Cadillac | Allante | Power Steering; Supplied w/ EVO Component; Reman Rack and Pinion |
| 1993 | Cadillac | Eldorado | Power Steering; Supplied w/ EVO Component; Reman Rack and Pinion |
| 1993 | Cadillac | Seville | Power Steering; Supplied w/ EVO Component; Reman Rack and Pinion |
