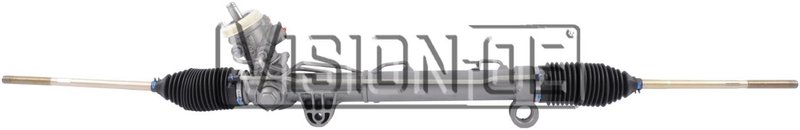

BBB Industries 103-0150 Rack and Pinion Assembly

Reman Rack and Pinion for GM W-Body Steering

BBB Industries Reman Rack and Pinion 103-0150 is a hydraulic steering gear assembly built for direct replacement in select Chevrolet and Oldsmobile applications. It is remanufactured with inner tie rods and bushings included, and it uses M16x1.50 pressure and return port threads for the specified hydraulic setup.

Compatible with 1997-2001 Chevrolet Lumina, 1997-1999 Chevrolet Monte Carlo, and 1997 Oldsmobile Cutlass Supreme equipped with power steering, this rack and pinion assembly is sized for the listed W-body fitments and steering geometry.

Key Features

• BBB Industries Reman Rack and Pinion, part number 103-0150
• Hydraulic rack and pinion assembly for power steering systems
• Inner tie rods included; outer tie rods not included
• Bushings included for the remanufactured steering gear
• Input shaft diameter: 0.625 in. (15.875 mm)
• Rack length: 48.875 in. (1241.425 mm)
• Distance between mounting holes: 12.25 in. (311.15 mm)
• Turns lock to lock: 2.688
• Pressure and return port thread size: M16x1.50

Product Details

The BBB Industries Reman Rack and Pinion 103-0150 is a remanufactured hydraulic steering component for vehicles that use a conventional power steering rack. It is built with the listed mounting dimensions, input shaft sizing, and port thread specifications to match the original steering layout on the supported Chevrolet Lumina, Chevrolet Monte Carlo, and Oldsmobile Cutlass Supreme applications. This part cross-references OE numbers 19320481 and 26055468 for the same application.

BBB Industries’ Reman Rack and Pinion product line focuses on remanufactured steering gear assemblies for direct-fit replacement where original hydraulic rack dimensions and connection points matter. For buyers searching by vehicle and steering type, this part number 103-0150 is a fitment-specific option for the listed GM models.

What It Helps Address

• Steering play or looseness from a worn rack and pinion assembly
• Hydraulic fluid leakage at the steering gear
• Binding or inconsistent steering effort
• Excessive free play caused by worn internal rack components
• Noise or rough steering feel in power steering systems

Installation Notes and Tips

Verify hydraulic port thread size, mounting-hole spacing, and input shaft dimensions before installation. This assembly includes inner tie rods and bushings, but outer tie rods are not included. After installation, the steering system should be inspected, filled with the correct fluid, bled, and aligned according to the vehicle service procedure.

Fits 1997-2001 Chevrolet Lumina, power steering; Fits 1997-1999 Chevrolet Monte Carlo, power steering; Fits 1997 Oldsmobile Cutlass Supreme, power steering, W Body.

Quality Assurance

This BBB Industries remanufactured steering gear is built to the listed application and dimensional specifications for the supported GM vehicles. Confirm part number 103-0150 against the original unit and vehicle build details before ordering.
