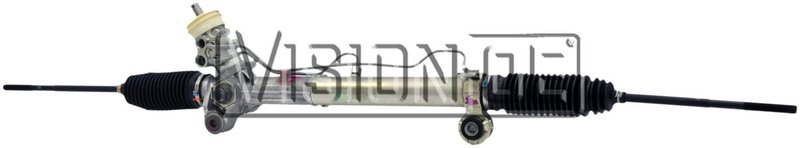

BBB Industries 103-0168 Rack and Pinion Assembly

Reman Rack and Pinion for Bonneville Steering

BBB Industries Reman Rack and Pinion 103-0168 is a hydraulic steering gear assembly built for direct replacement in select Pontiac Bonneville applications. It is remanufactured with inner tie rods and bushings included, and it uses M16x1.50 pressure and return port threads for a straightforward steering system match.

Fits 2001-2005 Pontiac Bonneville, N/A, including power steering models without Magnetic Speed Variable Assist Steering (NV8). This reman rack and pinion is a fitment-specific solution for Pontiac Bonneville steering repair when the original rack shows wear, leakage, or excessive play.

Key Features

• Brand: BBB Industries Reman Rack and Pinion
• Part number: 103-0168
• Hydraulic rack and pinion assembly
• Remanufactured unit
• Inner tie rods included
• Bushings included
• Outer tie rods not included
• Pressure port thread size: M16x1.50
• Return port thread size: M16x1.50
• Turns lock to lock: 2.813
• Rack length: 50.75 in. (1289.05 mm)
• Distance between mounting holes: 16.75 in. (425.45 mm)

Product Details

BBB Industries 103-0168 is part of the Reman Rack and Pinion line, a product line focused on remanufactured steering gear assemblies for vehicle-specific replacement. For 2001-2005 Pontiac Bonneville, this hydraulic rack and pinion matches the listed steering configuration and mounting dimensions, helping restore steering response and rack movement in the original system layout. The part number 103-0168 is also referenced for interchange with 19320496.

Compatible with Pontiac Bonneville power steering applications that do not use Magnetic Speed Variable Assist Steering (NV8), this assembly is built around the original fitment requirements rather than a universal design. The included inner tie rods and bushings support a complete steering gear replacement where those components are part of the assembly specification.

Common Steering Problems This Part Addresses

• Steering play or looseness at the wheel
• Hydraulic fluid leakage from the rack and pinion assembly
• Uneven or inconsistent steering response
• Worn internal rack components affecting control feel
• Noisy steering operation caused by internal wear

Installation Notes

Verify the vehicle is a 2001-2005 Pontiac Bonneville with power steering and without Magnetic Speed Variable Assist Steering (NV8) before installation. Confirm the mounting hole spacing, input shaft dimensions, and port thread sizes against the original unit. Outer tie rods are not included, so inspect the existing steering linkage and replace any worn related components during service. Proper hydraulic bleeding and alignment are required after installation.

Quality Assurance

BBB Industries remanufactures steering components to meet application-specific replacement needs for vehicles such as the Pontiac Bonneville. This rack and pinion is built as a remanufactured steering assembly for direct-fit service, with the listed dimensions and included components supporting accurate replacement. Part number 103-0168 provides a clear reference for ordering and verification.
