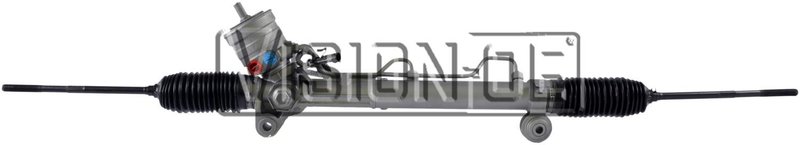

BBB Industries 103-0203 Rack and Pinion Assembly
Overview of BBB Industries Reman Rack and Pinion Assembly
The BBB Industries Reman Rack and Pinion Assembly 103-0203 is designed specifically for Cadillac DeVille and DTS models. This remanufactured hydraulic rack and pinion unit includes essential components to restore precise steering performance.
- Remanufactured hydraulic rack and pinion assembly
- Includes bushings and inner tie rods for complete installation
- Distance between mounting holes: 16.75 inches (425.45 mm)
- Input shaft diameter: 0.688 inches (17.463 mm), length: 1.125 inches (28.575 mm)
- Rack length: 50.75 inches (1289.05 mm)
- Pressure port thread size: M18x1.50; return port thread size: M16x1.50
- Turns lock to lock: 2.125
- Two mounting holes for secure fitment
Details on the Reman Rack and Pinion Product Line
The Reman Rack and Pinion line from BBB Industries offers remanufactured steering gear assemblies that meet strict quality standards. These units are rebuilt to restore original equipment specifications, providing a reliable replacement option for hydraulic steering systems. The 103-0203 part number is part of this line, ensuring compatibility and performance for Cadillac DeVille and DTS vehicles.
Product Description and Specifications
This remanufactured rack and pinion assembly is engineered for hydraulic steering systems, featuring a rack length of 50.75 inches and a precise input shaft diameter of 0.688 inches. The assembly includes bushings and inner tie rods, but outer tie rods are not included. The mounting holes are spaced 16.75 inches apart, allowing for a secure and accurate fit. Thread sizes for pressure and return ports are M18x1.50 and M16x1.50 respectively, supporting proper hydraulic connections. The unit offers 2.125 turns lock to lock, providing responsive steering control.
Common Applications and Problem Resolution
- Restores steering precision in Cadillac DeVille and DTS models
- Replaces worn or leaking hydraulic rack and pinion assemblies
- Eliminates excessive play or steering wheel vibration
- Addresses fluid leaks from pressure or return ports
- Improves overall steering response and safety
Installation Notes and Tips
Ensure compatibility with Cadillac DeVille and DTS models before installation. Verify that the mounting hole spacing of 16.75 inches matches the vehicle’s specifications. Use proper tools to connect hydraulic pressure and return ports with thread sizes M18x1.50 and M16x1.50. Since outer tie rods are not included, inspect and replace them separately if necessary. Follow manufacturer torque specifications for mounting bolts and input shaft connections.
Quality Assurance and Warranty
BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 103-0203 part number is backed by quality controls to ensure durability and performance. Warranty coverage details should be confirmed with the product documentation or supplier.
| Brand | BBB Industries |
|---|---|
| Part Number | 103-0203 |
| Position | Reman Rack and Pinion |
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 16.75 |
| Distance Between Mounting Holes (mm) | 425.45 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.688 |
| Input Shaft Diameter (mm) | 17.463 |
| Input Shaft Length (In) | 1.125 |
| Input Shaft Length (mm) | 28.575 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M18X1.50 |
| Rack Length (In) | 50.75 |
| Rack Length (mm) | 1289.05 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 2.125 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2010 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2009 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2008 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2007 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2006 | Cadillac | DTS | N/A | Power Steering; w/ Heavy Duty Suspension (FE7), w/ Hearse Conversion Package (B9Q), w/ Limo Package (V4U); Reman Rack and Pinion |
| 2005 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
| 2004 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
| 2003 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
| 2002 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
| 2001 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
| 2000 | Cadillac | DeVille | N/A | Power Steering; Hearse Conversion Pkg. Or Limo Pkg.; Reman Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
