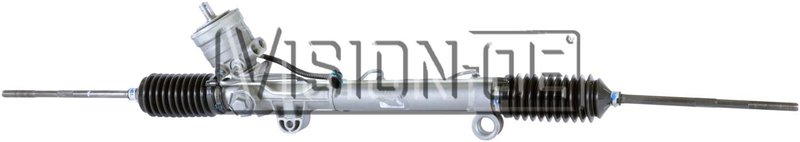

BBB Industries 103-0210 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion Assembly

The BBB Industries Reman Rack and Pinion Assembly 103-0210 is designed specifically for Pontiac Grand Prix models. This remanufactured hydraulic rack and pinion unit includes essential components to restore steering performance and reliability.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for complete installation
• Distance between mounting holes: 15.5 inches (393.7 mm)
• Input shaft diameter: 0.688 inches (17.463 mm), length: 1.125 inches (28.575 mm)
• Rack length: 49.5 inches (1257.3 mm)
• Pressure port thread size: M18x1.50; return port thread size: M16x1.50
• 2 mounting holes with 2.375 turns lock to lock

Details on the Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries offers remanufactured steering gear assemblies that meet OEM specifications. This product line focuses on restoring original steering feel and function by including critical components such as bushings and inner tie rods. The 103-0210 part number is part of this line, providing a cost-effective solution for Pontiac Grand Prix owners seeking reliable steering system replacement parts.

Product Description and Specifications

This remanufactured rack and pinion assembly is engineered for hydraulic steering systems and is compatible with Pontiac Grand Prix vehicles. It features a rack length of 49.5 inches (1257.3 mm) and a mounting hole distance of 15.5 inches (393.7 mm), ensuring proper fitment. The input shaft measures 0.688 inches (17.463 mm) in diameter and 1.125 inches (28.575 mm) in length, designed to match factory specifications. The assembly includes bushings and inner tie rods, but outer tie rods are not included. Thread sizes for pressure and return ports are M18x1.50 and M16x1.50 respectively, facilitating proper hydraulic connections. The unit has two mounting holes and offers 2.375 turns lock to lock for precise steering control.

Common Applications and Problem Resolution

• Restores steering response and reduces play in Pontiac Grand Prix hydraulic steering systems
• Replaces worn or damaged rack and pinion assemblies causing steering noise or stiffness
• Addresses fluid leaks from pressure or return ports
• Corrects uneven or difficult steering effort
• Eliminates excessive steering wheel free play

Installation Notes and Tips

Ensure compatibility with Pontiac Grand Prix models before installation. Verify mounting hole spacing of 15.5 inches and input shaft dimensions to match vehicle specifications. Use proper torque settings on mounting bolts and hydraulic connections with M18x1.50 and M16x1.50 thread sizes. Since outer tie rods are not included, inspect and replace them separately if necessary. Bleed the hydraulic steering system thoroughly after installation to remove air and ensure smooth operation.

Quality Assurance and Warranty Information

BBB Industries remanufactured rack and pinion assemblies undergo rigorous testing to meet OEM standards. The 103-0210 part number is built to restore original steering performance and durability. Warranty coverage details should be confirmed with the parts provider, as BBB Industries typically offers limited warranties on remanufactured steering components.
