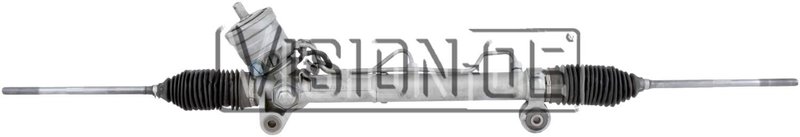

BBB Industries 103-0238 Rack and Pinion Assembly
Overview of BBB Industries Reman Rack and Pinion Assembly
The BBB Industries Reman Rack and Pinion Assembly 103-0238 is designed specifically for Buick DTS and Cadillac Lucerne models. This remanufactured hydraulic rack and pinion unit includes essential components to restore precise steering control and vehicle handling.
- Remanufactured hydraulic rack and pinion assembly
- Includes bushings and inner tie rods for complete installation
- Distance between mounting holes: 16.75 inches (425.45 mm)
- Rack length: 50.625 inches (1285.875 mm)
- Input shaft diameter: 0.75 inches (19.05 mm), length: 1.125 inches (28.575 mm)
- Pressure and return port thread size: M16x1.50
- Turns lock to lock: 2.25
- Two mounting holes for secure fitment
Detailed Product Description
This BBB Industries Reman Rack and Pinion Assembly (part number 103-0238) is engineered to meet the specifications required for Buick DTS and Cadillac Lucerne vehicles. The hydraulic design ensures smooth steering response and reliable performance. Included bushings and inner tie rods simplify installation and help maintain proper alignment. The rack length of 50.625 inches and mounting hole spacing of 16.75 inches provide a precise fit, while the input shaft dimensions ensure compatibility with the vehicle's steering column. The pressure and return ports use M16x1.50 thread sizes, matching factory hydraulic connections.
About the Reman Rack and Pinion Product Line
The Reman Rack and Pinion line from BBB Industries offers remanufactured steering components that restore original equipment functionality. Each unit undergoes a thorough rebuilding process to meet strict quality standards, providing a cost-effective alternative to new parts without compromising reliability. This product line focuses on hydraulic rack and pinion assemblies compatible with specific vehicle makes and models, including Buick and Cadillac.
Common Applications and Problem Resolution
- Restores steering precision and reduces play in Buick DTS and Cadillac Lucerne
- Eliminates hydraulic leaks and fluid loss in the steering system
- Addresses uneven or difficult steering response
- Replaces worn or damaged rack and pinion components
- Improves vehicle handling and safety
Installation Notes and Tips
- Verify compatibility with Buick DTS or Cadillac Lucerne before installation
- Ensure hydraulic lines match M16x1.50 thread size for pressure and return ports
- Use included bushings and inner tie rods for proper assembly
- Check input shaft dimensions (0.75 inch diameter, 1.125 inch length) for fit
- Follow manufacturer torque specifications for mounting bolts and connections
Quality Assurance and Warranty
BBB Industries remanufactured rack and pinion assemblies undergo comprehensive testing to meet OEM standards. The 103-0238 part is built to provide reliable steering performance for Buick DTS and Cadillac Lucerne vehicles. Warranty coverage details should be confirmed with the distributor or installer, as BBB Industries typically offers limited warranties on remanufactured steering components.
| Brand | BBB Industries |
|---|---|
| Part Number | 103-0238 |
| Position | Reman Rack and Pinion |
| Bushings Included | Yes |
| Distance Between Mounting Holes (In) | 16.75 |
| Distance Between Mounting Holes (mm) | 425.45 |
| Hydraulic or Electric | Hydraulic |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.75 |
| Input Shaft Diameter (mm) | 19.05 |
| Input Shaft Length (In) | 1.125 |
| Input Shaft Length (mm) | 28.575 |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Pressure Port Thread Size | M16X1.50 |
| Rack Length (In) | 50.625 |
| Rack Length (mm) | 1285.875 |
| Return Port Thread Size | M16X1.50 |
| Turns Lock To Lock | 2.25 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | 4.6L | V8 | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2011 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion | ||
| 2010 | Buick | Lucerne | 4.6L | V8 | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2010 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion | ||
| 2009 | Buick | Lucerne | 4.6L | V8 | N/A | Compatible with vehicles equipped with power steering.; Reman Rack and Pinion |
| 2009 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion | ||
| 2008 | Buick | Lucerne | 4.6L | V8 | N/A | Power Steering; w/ 17" Wheels; Reman Rack and Pinion |
| 2008 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion | ||
| 2007 | Buick | Lucerne | 4.6L | V8 | N/A | Power Steering; w/ 17" Wheels; Reman Rack and Pinion |
| 2007 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion | ||
| 2006 | Buick | Lucerne | 4.6L | V8 | N/A | Power Steering; w/ 17" Wheels; Reman Rack and Pinion |
| 2006 | Cadillac | DTS | N/A | Power Steering; w/ Soft Ride Suspension (FE1); Reman Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
