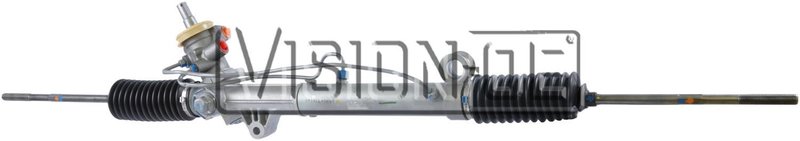

BBB Industries 103-0254 Rack and Pinion Assembly

Overview of BBB Industries Reman Rack and Pinion 103-0254

The BBB Industries Reman Rack and Pinion Assembly 103-0254 is designed for precise steering control in select Buick, Chevrolet, Pontiac, and Saturn vehicles. This remanufactured hydraulic rack and pinion unit is engineered to restore steering performance for models including the Montana, Relay, Terraza, and Uplander.

• Remanufactured hydraulic rack and pinion assembly
• Includes bushings and inner tie rods for comprehensive replacement
• 12-inch (304.8 mm) distance between mounting holes with 2 mounting points
• Input shaft diameter of 0.75 inches (19.05 mm) and length of 1.75 inches (44.45 mm)
• Rack length measures 48.5 inches (1231.9 mm)
• Pressure and return port thread size M16x1.50
• 3 turns lock to lock for responsive steering

Detailed Product Description

This BBB Industries Reman Rack and Pinion 103-0254 is a remanufactured steering gear assembly designed to meet OEM specifications for hydraulic steering systems. It includes essential components such as bushings and inner tie rods, ensuring a more complete installation and reducing the need for additional parts. The rack length of 48.5 inches and the 12-inch distance between mounting holes provide a precise fit for compatible vehicles. The input shaft diameter and length are engineered to match factory dimensions, facilitating straightforward installation. The pressure and return ports use M16x1.50 thread sizes, standard for hydraulic steering connections. With 3 turns lock to lock, this assembly offers controlled steering response suitable for the specified Buick, Chevrolet, Pontiac, and Saturn models.

Reman Rack and Pinion Product Line

The Reman Rack and Pinion line from BBB Industries focuses on remanufactured steering components that restore original steering performance while providing cost-effective alternatives to new parts. This product line undergoes rigorous testing and rebuilding processes to ensure reliability and compatibility with hydraulic steering systems. The 103-0254 assembly is part of this line, offering a balance of quality and value for vehicles requiring hydraulic rack and pinion replacements.

Common Applications and Issues Addressed

• Restores steering precision in Buick Montana, Chevrolet Uplander, Pontiac Relay, and Saturn Terraza
• Replaces worn or leaking hydraulic rack and pinion assemblies
• Eliminates excessive play or looseness in steering
• Addresses steering noise or stiffness caused by damaged bushings or inner tie rods
• Corrects fluid leaks at pressure or return ports

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Inspect and replace outer tie rods separately, as they are not included
• Ensure hydraulic lines match M16x1.50 thread size for proper connection
• Check mounting hole alignment using the 12-inch spacing for accurate fitment
• Bleed the hydraulic steering system thoroughly after installation to remove air

Quality Assurance and Warranty

BBB Industries remanufactured rack and pinion assemblies undergo comprehensive inspection and testing to meet industry standards. The 103-0254 part is built to restore factory steering performance and durability. Warranty coverage details should be confirmed with the distributor or installer, as BBB Industries typically offers limited warranties on remanufactured steering components.
