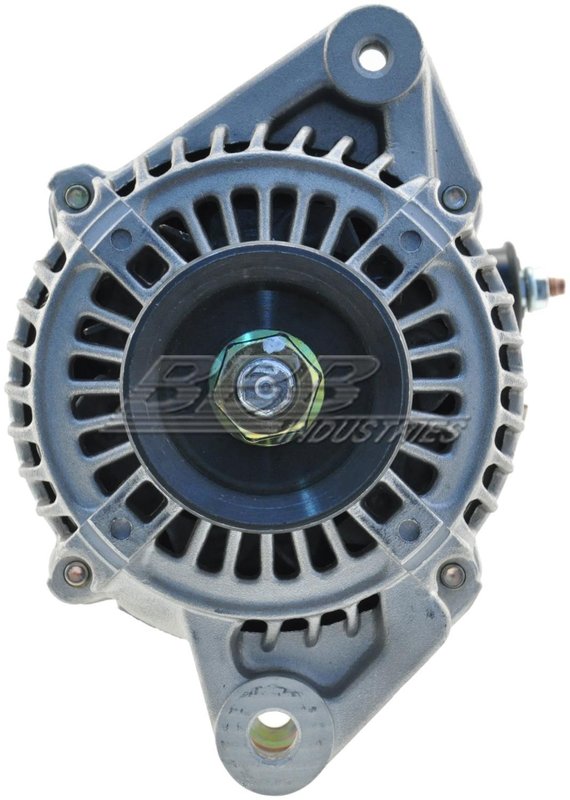

BBB Industries 11085 Alternator
| Brand | BBB Industries 11085 |
|---|---|
| AC Tap | No |
| Amperage Rating | 80 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 4 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-11/16 |
| Outside Pulley Diameter (mm) | 68 |
| Plug Clock Position | 9 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Scion and Toyota · 5 vehicles |
Reman alternator. Restored to deliver dependable charging performance.
OE manufacturer. Built to Nippondenso specifications for proper operation.
Pulley included. Ready for serpentine belt applications with a conventional pulley.
Cross-references 27060-21030, 27060-21031 and 102211-1950 for the same application. See all 5.
BBB Industries 11085 Reman Alternator
The BBB Industries REMAN ALTERNATOR 11085 is a 12-volt replacement alternator built for charging-system service on select Toyota and Scion applications. It uses an internal voltage regulator, air cooling, and a conventional pulley setup to match the OE-style configuration for the listed vehicles.
Key Features
- 80 amp amperage rating for standard charging output
- 12V alternator with internal voltage regulator
- Air-cooled design with internal fan
- Conventional pulley with 4 grooves
- Serpentine belt pulley included
- Clockwise rotation
- OE manufacturer reference: Nippondenso
- Part number 11085 for catalog and service lookup
Product Details
BBB Industries 11085 is a remanufactured alternator for vehicles that use a Nippondenso-style charging system. The unit is configured with negative polarity, a 9 o'clock plug clock position, and a 2-11/16 inch (68 mm) outside pulley diameter. It is a direct-fit electrical replacement for 2004-2006 Scion xB and 2004-2005 Toyota Echo applications listed below. This part cross-references OE-style numbers such as 27060-21030 and 102211-1950 for the same application.
Vehicle Fitment
- Fits 2004-2006 Scion xB, N/A — 80 amps; REMAN ALTERNATOR
- Fits 2004-2005 Toyota Echo, N/A — Standard 80 amps alternator; REMAN ALTERNATOR
Common Charging System Issues
- Low battery charge or repeated battery drain
- Dim headlights or unstable electrical output
- Battery warning light illuminated on the dash
- Charging voltage below specification
- Alternator noise from worn internal components
Installation Notes and Tips
Verify pulley groove count, plug clock position, rotation direction, and OE-style connector match before installation. Inspect the serpentine belt, battery condition, and charging cables during replacement to confirm the charging system is operating correctly after installation. Confirm fitment by vehicle year, make, and model before ordering part number 11085.
Quality Assurance
BBB Industries remanufactured alternators are rebuilt to service OE-style charging system applications and are specified here with the listed electrical and pulley configuration details for accurate replacement selection.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Scion | xB | 1.5L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2005 | Scion | xB | 1.5L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2005 | Toyota | Echo | 1.5L | L4 | N/A | Standard 80 Amps alternator.; REMAN ALTERNATOR |
| 2004 | Scion | xB | 1.5L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2004 | Toyota | Echo | 1.5L | L4 | N/A | Standard 80 Amps alternator.; REMAN ALTERNATOR |
