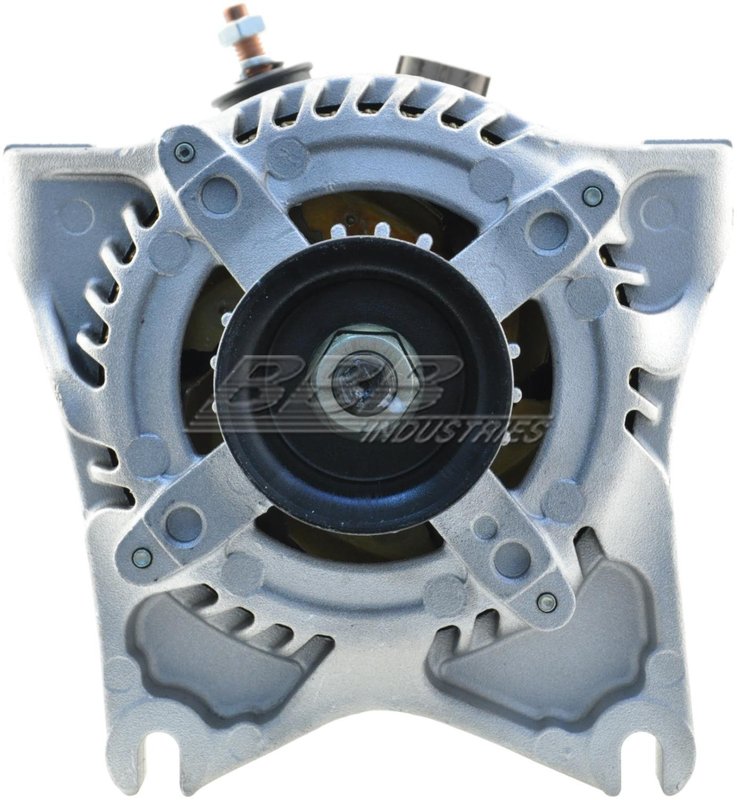

BBB Industries 11292 Alternator
| Brand | BBB Industries 11292 |
|---|---|
| AC Tap | No |
| Amperage Rating | 150 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-3/16 |
| Outside Pulley Diameter (mm) | 55 |
| Plug Clock Position | 11 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Ford and Lincoln · 8 vehicles |
Reman alternator. A remanufactured unit for dependable charging performance.
150-amp output. Delivers strong electrical capacity for demanding systems.
Pulley included. Ready with a conventional serpentine pulley already installed.
Cross-references 9L3T-10300-CB, 9L3Z-10346-C and 104210-1110 for the same application. See all 6.
Reman Alternator for Ford and Lincoln Applications
The BBB Industries REMAN ALTERNATOR 11292 is a 12-volt, 150-amp replacement alternator built for select Ford and Lincoln charging system applications. It uses an internal voltage regulator, air cooling, and a conventional pulley setup to match the OE-style configuration on supported vehicles.
Key Features
- 150 amp amperage rating for charging system output
- 12V alternator with internal voltage regulator
- OE manufacturer reference: Nippondenso
- Serpentine belt pulley with 6 grooves included
- Clockwise rotation with internal fan and air cooling
- Negative polarity and 11 o’clock plug clock position
- Outside pulley diameter: 2-3/16 in. (55 mm)
Product Details
BBB Industries REMAN ALTERNATOR 11292 is a remanufactured alternator for vehicles originally equipped with a Nippondenso-style charging unit. The design includes a conventional pulley, internal fan, and internal regulator for direct replacement use in 12-volt systems. This part cross-references Ford and OE-style numbers such as 9L3T-10300-CB and 104210-1110 for the same application. It is a strong match for 2009-2010 Ford F-150, 2009-2010 Ford Expedition, and 2009-2010 Lincoln Navigator 150 amp alternator applications.
What This Alternator Helps Address
- Battery warning light caused by alternator output loss
- Low charging voltage during driving or idling
- Electrical system instability from a failing charging unit
- Accessory performance issues tied to weak alternator output
- Noise or pulley-related wear from a worn OE alternator
Installation Notes and Tips
Verify pulley groove count, plug clock position, rotation direction, and amperage rating before installation. This alternator uses a serpentine belt pulley and a negative polarity internal regulator layout, so connector and belt alignment should be checked against the original unit. Fits 2009-2010 Ford F-150, N/A; Fits 2009-2010 Ford Expedition, N/A; Fits 2009-2010 Lincoln Navigator, N/A.
Quality Assurance
BBB Industries remanufactures charging components to OE-style specifications for direct replacement applications. Part number 11292 is built for the listed Ford F-150, Ford Expedition, and Lincoln Navigator fitments with the stated electrical and pulley configuration.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Ford | Expedition | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
| 2010 | Ford | F-150 | 4.6L | V8 | N/A | w/CD Changer; 150 Amps; REMAN ALTERNATOR |
| 2010 | Ford | F-150 | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
| 2010 | Lincoln | Navigator | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
| 2009 | Ford | Expedition | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
| 2009 | Ford | F-150 | 4.6L | V8 | N/A | w/CD Changer; 150 Amps; REMAN ALTERNATOR |
| 2009 | Ford | F-150 | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
| 2009 | Lincoln | Navigator | 5.4L | V8 | N/A | Suitable for 150 Amp alternator applications; REMAN ALTERNATOR |
