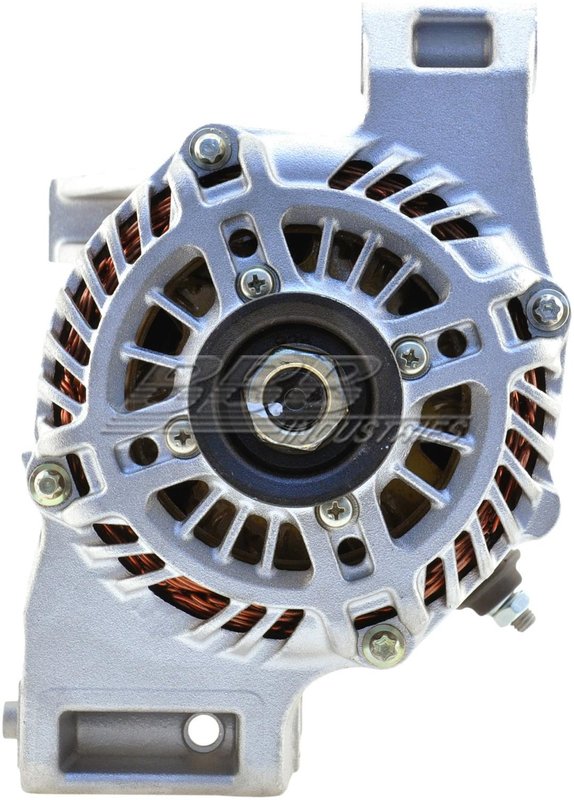

BBB Industries 11342 Alternator
| Brand | BBB Industries 11342 |
|---|---|
| AC Tap | No |
| Amperage Rating | 100 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Mitsubishi |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 1-15/16 |
| Outside Pulley Diameter (mm) | 49 |
| Plug Clock Position | 9 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Mazda · 8 vehicles |
Reman alternator. OE-style replacement built to restore charging performance.
Internal voltage regulator. Integrated regulation simplifies installation and operation.
Serpentine pulley included. Ready for belt-driven applications with a conventional pulley.
Cross-references A2TJ0791 and LF8J-18-300 for the same application. See all 2.
Remanufactured Alternator for Mazda 3
BBB Industries REMAN ALTERNATOR 11342 is a 12-volt, 100-amp replacement alternator built for charging-system service on select Mazda applications. It is compatible with 2010-2013 Mazda 3 and 2010-2013 Mazda 3 Sport models that use a 100-amp alternator.
Key Features
- Remanufactured alternator from BBB Industries REMAN ALTERNATOR line
- 100-amp amperage rating for the specified Mazda charging system
- 12V unit with internal voltage regulator
- Air-cooled design with internal fan
- Serpentine belt pulley included
- 6-groove conventional pulley
- Clockwise rotation
- Negative polarity
- OE manufacturer reference: Mitsubishi
- Plug clock position: 9
Product Details
The BBB Industries 11342 reman alternator is built for direct replacement service on Mazda 3 and Mazda 3 Sport vehicles equipped with a 100-amp charging output. The unit uses an internal regulator, air cooling, and a conventional serpentine pulley with six grooves, matching the electrical and belt-drive requirements of the listed applications. This part cross-references OE-style numbers A2TJ0791 and LF8J-18-300 for the same application.
What It Helps Address
- Battery warning light caused by alternator output loss
- Low charging voltage during driving
- Dim lights or electrical instability from weak charging performance
- Battery drain after repeated short trips
- Charging-system failure on Mazda 3 and Mazda 3 Sport models
Installation Notes
Verify the vehicle uses a 100-amp alternator before ordering. Confirm pulley style, plug clock position, rotation direction, and connector layout against the original unit. This alternator is listed for 2010-2013 Mazda 3 and 2010-2013 Mazda 3 Sport, so match the existing charging-system configuration before installation. Professional installation and charging-system testing after replacement are recommended.
Quality Assurance
BBB Industries remanufactured electrical components are processed for replacement use in OE-style applications. Part number 11342 is specified for the listed Mazda fitment and charging-system configuration.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Mazda | 3 | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2013 | Mazda | 3 Sport | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2012 | Mazda | 3 | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2012 | Mazda | 3 Sport | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2011 | Mazda | 3 | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2011 | Mazda | 3 Sport | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2010 | Mazda | 3 | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2010 | Mazda | 3 Sport | 2.0L | L4 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
