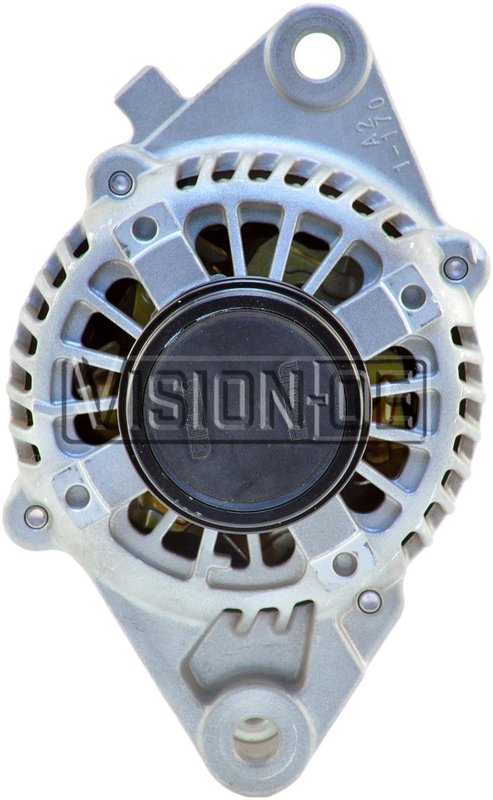

BBB Industries 11596 Alternator
Reman Alternator for Toyota Tacoma
BBB Industries REMAN ALTERNATOR Part Number 11596 is a remanufactured 12-volt alternator built for select Toyota Tacoma applications. It features an 80-amp output, internal voltage regulation, and a serpentine pulley setup with a decoupler clutch pulley for OE-style charging system operation.
Compatible with 2011-2015 Toyota Tacoma and 2016 Toyota Tacoma 80-amp applications noted through 08/2015, this alternator is built around Nippondenso OE specifications and uses a clockwise rotation with a negative polarity configuration. Part number 11596 is a direct-fit charging component for Tacoma owners replacing a worn or failing alternator.
Key Features
- BBB Industries REMAN ALTERNATOR
- Part Number: 11596
- 80 amp output
- 12-volt electrical system
- Internal voltage regulator
- Air-cooled design with internal fan
- Decoupler pulley included
- 7-groove serpentine pulley
- Clockwise rotation
- OE manufacturer reference: Nippondenso
Product Details
This remanufactured alternator is configured for Toyota Tacoma charging systems that use a serpentine belt and decoupler pulley arrangement. The internal regulator, negative polarity, and 11 o'clock plug clock position support OE-style electrical integration, while the 52 mm pulley diameter and 7-groove design align with the listed application requirements. Part number 11596 is also cross-referenced to 27060-75490 for the same application.
Common Issues This Part Can Address
- Battery warning light caused by alternator output loss
- Low charging voltage during driving
- Dim lights or unstable electrical performance
- Noise from a worn alternator pulley or internal components
- Charging system failure on a Toyota Tacoma
Installation Notes and Tips
Verify pulley style, plug orientation, amperage rating, and rotation direction before installation. This alternator is listed for 2011-2015 Toyota Tacoma and for 2016 Toyota Tacoma 80-amp applications through 08/2015. Confirm belt routing and charging system specifications against the vehicle before replacement. Fits 2011-2015 Toyota Tacoma, N/A. Fits 2016 Toyota Tacoma, N/A.
Quality Assurance
BBB Industries remanufactured electrical components are built to meet application-specific requirements for charging system replacement. This unit is remanufactured to OE-style specifications for the listed Toyota Tacoma fitments.
| Brand | BBB Industries |
|---|---|
| Part Number | 11596 |
| Position | REMAN ALTERNATOR |
| Amperage Rating | 80 |
| AC Tap | No |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | Yes |
| Fan Type | Internal |
| Number Of Pulley Grooves | 7 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-1/16 |
| Outside Pulley Diameter (mm) | 52 |
| Plug Clock Position | 11 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Decoupler |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; To 08/2015; REMAN ALTERNATOR |
| 2015 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2014 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2013 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2012 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
| 2011 | Toyota | Tacoma | 2.7L | L4 | N/A | 80 Amps; REMAN ALTERNATOR |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
