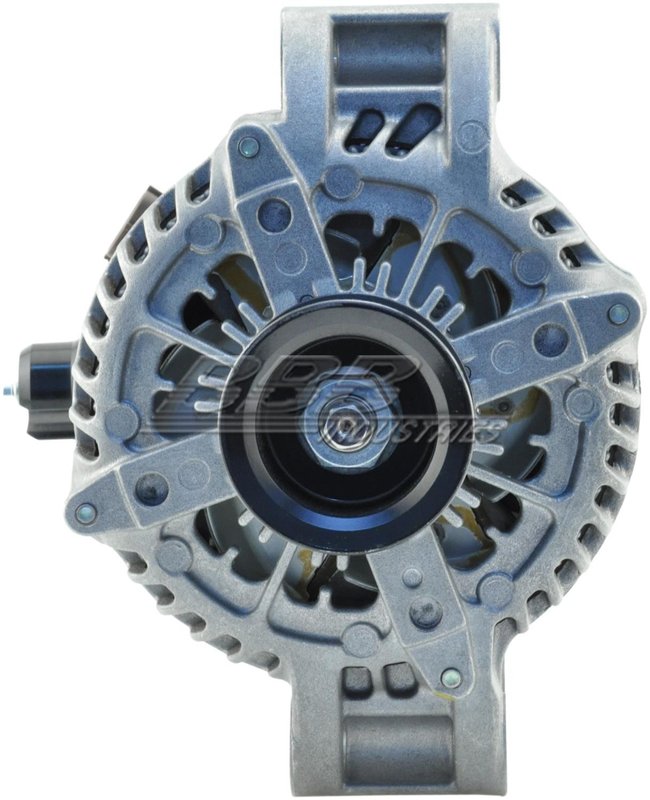

BBB Industries 11620 Alternator
| Brand | BBB Industries 11620 |
|---|---|
| AC Tap | No |
| Amperage Rating | 200 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-1/8 |
| Outside Pulley Diameter (mm) | 54 |
| Plug Clock Position | 2 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Ford · 24 vehicles |
Remanufactured alternator. Restored for dependable charging performance.
200-amp output. Delivers strong electrical capacity for demanding systems.
Internal regulator. Built with an internal voltage regulator for simpler setup.
Cross-references 104210-6490, 104211-0190 and 104211-0890 for the same application. See all 9.
Reman Alternator for Ford Super Duty and F-150
BBB Industries REMAN ALTERNATOR 11620 is a 12-volt, 200-amp replacement alternator built for select Ford truck applications. It uses an internal voltage regulator, clockwise rotation, and a serpentine-belt pulley setup to match the listed OE-style configuration.
Key Features
- 200-amp amperage rating for high electrical demand
- 12V alternator with internal voltage regulator
- OE manufacturer reference: Nippondenso
- Internal fan with air cooling method
- 6-groove conventional pulley included
- Clockwise rotation with negative polarity
- 2 o’clock plug clock position
- Outside pulley diameter: 2-1/8 in. (54 mm)
Product Details
This BBB Industries remanufactured alternator is built around the specifications commonly used in Ford charging systems, including the 200-amp output, serpentine belt drive, and internal regulator layout. Part number 11620 is listed for 2011-2014 Ford F-150, 2013-2016 Ford F-250 Super Duty, 2013-2016 Ford F-350 Super Duty, 2017-2021 Ford F-250 Super Duty, 2017-2021 Ford F-350 Super Duty, and 2022 Ford F-250 Super Duty and F-350 Super Duty applications. This part cross-references Ford OE numbers such as BL3T-10300-CA and BL3Z-10346-B for the same application.
Common Reasons for Replacement
- Battery warning light or charging system fault
- Low charging output under electrical load
- Dim lights, weak accessories, or unstable voltage
- Noise from a worn alternator bearing or pulley area
- Charging issues after high-mileage or heavy-duty use
Installation Notes and Tips
Verify pulley groove count, plug clock position, rotation direction, and amperage rating before installation. Confirm the vehicle uses the listed Nippondenso-style configuration and compare the OE number on the original unit when possible. After installation, check belt alignment, battery condition, and charging voltage at idle and under load.
Quality Assurance
BBB Industries remanufactured electrical components are processed to meet application-specific fitment and performance requirements for the listed Ford trucks. Part number 11620 is a reman alternator intended to replace the original charging unit on the confirmed applications above.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | 200 Amps; REMAN ALTERNATOR |
| 2022 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | 200 Amps; REMAN ALTERNATOR |
| 2021 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2021 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2020 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2020 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2019 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2019 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2018 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2018 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2017 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2017 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Alternator - 200 Amps; REMAN ALTERNATOR |
| 2016 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2016 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2015 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2015 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2014 | Ford | F-150 | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2014 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2014 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2013 | Ford | F-150 | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2013 | Ford | F-250 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2013 | Ford | F-350 Super Duty | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2012 | Ford | F-150 | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
| 2011 | Ford | F-150 | 6.2L | V8 | N/A | Opt; 200 Amps; REMAN ALTERNATOR |
