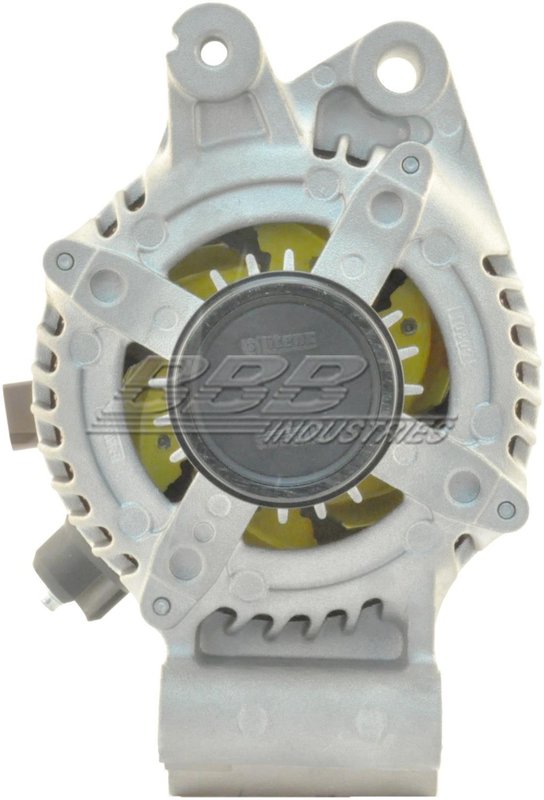

BBB Industries 11636 Alternator

Reman Alternator for Ford Escape

BBB Industries REMAN ALTERNATOR 11636 is a 12-volt, 150-amp replacement alternator for select Ford Escape applications. It uses an internal voltage regulator, clockwise rotation, and a serpentine-belt pulley setup to match the original charging system layout.

Key Features

• 150 amp amperage rating for OE-style charging output
• 12V alternator with internal voltage regulator
• OE manufacturer reference: Nippondenso
• Decoupler pulley included with 6-groove serpentine belt design
• Air-cooled unit with internal fan
• Negative polarity and clockwise rotation
• Plug clock position: 4
• Outside pulley diameter: 2-1/16 in. (52 mm)

Product Details

BBB Industries REMAN ALTERNATOR 11636 is built for Ford Escape charging-system service where the original unit uses a Nippondenso-style design. This remanufactured alternator includes the pulley and uses a decoupled or clutch pulley configuration, which helps maintain belt drive consistency in applications that call for that setup. The 150-amp output supports the vehicle’s electrical demand, while the internal regulator simplifies replacement on the correct OE-style application. This part cross-references OE numbers CJ5T-10300-BB and CJ5Z-10346-D for the same application.

Vehicle Fitment

• Fits 2017-2019 Ford Escape, N/A — Standard alternator with 150 Amps; REMAN ALTERNATOR
• Fits 2013-2016 Ford Escape, N/A — wo/AC Power Outlet; 150 Amps; REMAN ALTERNATOR

Common Replacement Reasons

• Battery warning light or charging-system fault codes
• Low system voltage or intermittent electrical operation
• Dim lights, slow accessory performance, or weak charging output
• Noise from a worn pulley or alternator bearing area
• Charging issues after alternator failure on a Ford Escape

Installation Notes and Tips

Verify the 150-amp rating, plug clock position, pulley type, and serpentine belt configuration before installation. Confirm the vehicle is a 2013-2019 Ford Escape application and check whether the vehicle is equipped with an AC power outlet, since 2013-2016 models listed here are for vehicles without that option. Inspect the belt, tensioner, and charging connectors during replacement to help ensure proper system operation.

Quality Assurance

BBB Industries remanufactures charging components to OE-style specifications for direct replacement use. Part number 11636 is built around the listed electrical and pulley specifications to support proper fitment on the confirmed Ford Escape applications.
