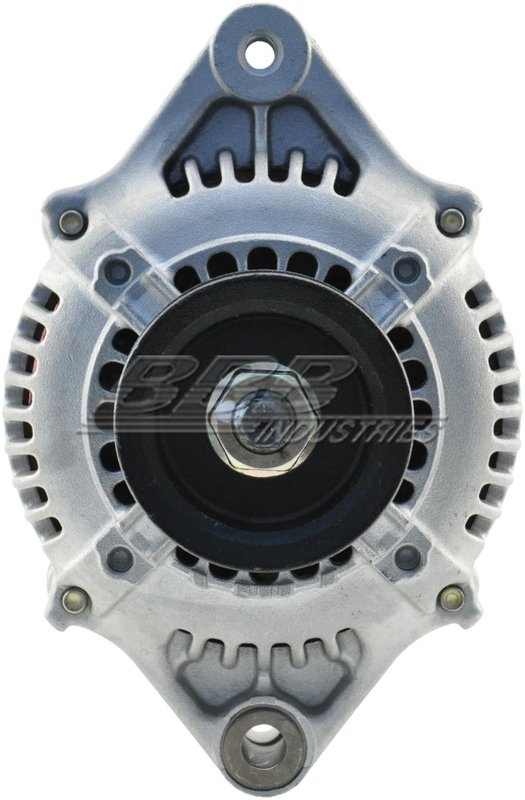

BBB Industries 13509 Alternator
Reman Alternator for Honda Civic and Civic del Sol
BBB Industries REMAN ALTERNATOR 13509 is a 12-volt, 70-amp replacement alternator built for select Honda compact applications with Nippondenso unit specifications. It is a direct-fit charging system component for 1992-1995 Honda Civic and 1993 Honda Civic del Sol models.
Key Features
- 70 amp amperage rating for standard charging system output
- 12V alternator with internal voltage regulator
- Air-cooled design with internal fan
- Serpentine belt pulley with 4 grooves included
- Counterclockwise rotation direction
- Negative polarity configuration
- OE manufacturer reference: Nippondenso
- Plug clock position: 12
Product Details
BBB Industries REMAN ALTERNATOR 13509 is a remanufactured alternator for Honda Civic and Honda Civic del Sol applications that use the Nippondenso-style charging unit. The unit includes a conventional pulley with a 2-7/16 in. (62 mm) outside diameter and is configured for serpentine belt drive systems. With an internal regulator, negative polarity, and counterclockwise rotation, this alternator matches the electrical and mechanical requirements of the listed vehicles.
This part cross-references OE-style numbers such as 31100-P08-003 and 100211-9770 for the same application.
Vehicle Fitment
- Fits 1992-1995 Honda Civic, N/A. NDenso Unit; 70 Amps; REMAN ALTERNATOR.
- Fits 1993 Honda Civic del Sol, N/A. NDenso Unit; 70 Amps; REMAN ALTERNATOR.
Common Replacement Reasons
- Battery warning light or charging system warning light
- Low charging output at idle or under load
- Dim headlights or electrical accessories losing power
- Alternator bearing noise or pulley wear
- Failed internal voltage regulation
Installation Notes
Verify pulley groove count, plug clock position, rotation direction, and OE manufacturer match before installation. Confirm belt alignment and electrical connector fitment on the Honda Civic or Civic del Sol application, and inspect the charging circuit, battery condition, and drive belt before returning the vehicle to service.
Quality Assurance
BBB Industries remanufactured electrical components are built to meet application-specific replacement requirements for charging system service.
| Brand | BBB Industries |
|---|---|
| Part Number | 13509 |
| Position | REMAN ALTERNATOR |
| Amperage Rating | 70 |
| AC Tap | No |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 4 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-7/16 |
| Outside Pulley Diameter (mm) | 62 |
| Plug Clock Position | 12 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Counterclockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Honda | Civic | 1.6L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1994 | Honda | Civic | 1.6L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1993 | Honda | Civic | 1.5L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1993 | Honda | Civic | 1.6L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1993 | Honda | Civic del Sol | 1.5L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1993 | Honda | Civic del Sol | 1.6L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1992 | Honda | Civic | 1.5L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
| 1992 | Honda | Civic | 1.6L | L4 | N/A | NDenso Unit; 70 Amps; REMAN ALTERNATOR |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
