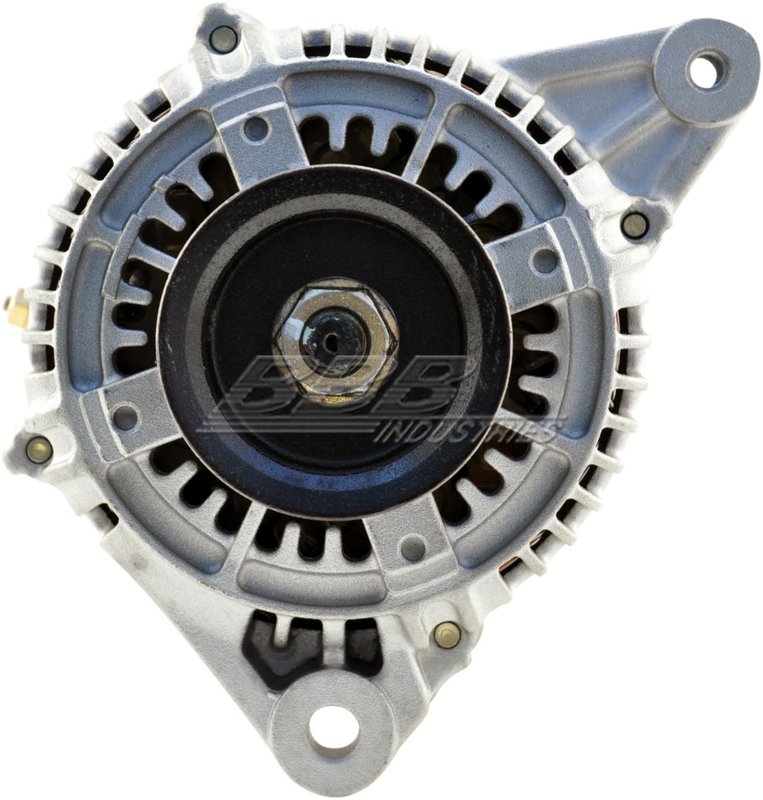

BBB Industries 13806 Alternator
| Brand | BBB Industries 13806 |
|---|---|
| AC Tap | No |
| Amperage Rating | 100 |
| Brushless Design | No |
| Cooling Method | Air |
| Decoupled Or Clutch Pulley | No |
| Fan Type | Internal |
| Number Of Pulley Grooves | 6 |
| OE Manufacturer | Nippondenso |
| One Wire Capable | No |
| Outside Pulley Diameter (in) | 2-13/16 |
| Outside Pulley Diameter (mm) | 71 |
| Plug Clock Position | 2 |
| Polarity | Negative |
| Pulley Belt Type | Serpentine |
| Pulley Included | Yes |
| Pulley Type | Conventional |
| Rotation Direction | Clockwise |
| Voltage (V) | 12 |
| Voltage Regulator Type | Internal |
| Product line | REMAN ALTERNATOR |
| Fits | Toyota · 6 vehicles |
Remanufactured unit. Restored to deliver dependable charging performance.
OE manufacturer pedigree. Built to match Nippondenso specifications.
Internal regulator. Integrated voltage control for a cleaner, simpler setup.
Cross-references 27060-0A040, 27060-20090 and 101211-7670 for the same application. See all 4.
Reman Alternator for Toyota Sienna
BBB Industries REMAN ALTERNATOR 13806 is a 12-volt, 100-amp replacement alternator for select Toyota Sienna applications. It is built with an internal voltage regulator, internal fan, and air cooling for OE-style charging system service.
Key Features
- 100 amp amperage rating for select Toyota Sienna charging systems
- 12V alternator with internal voltage regulator
- OE manufacturer reference: Nippondenso
- Serpentine belt pulley with 6 grooves and included conventional pulley
- Clockwise rotation with negative polarity
- Air-cooled design with internal fan
- 2 o'clock plug clock position
Product Details
BBB Industries 13806 is a remanufactured alternator for 1998-2003 Toyota Sienna models equipped with a 100-amp charging output. This reman alternator follows the Nippondenso OE layout and uses a conventional pulley, 71 mm outside pulley diameter, and internal regulation for direct replacement service. The BBB Industries REMAN ALTERNATOR line focuses on remanufactured electrical components built for OE-style fit and function in charging and starting applications. This part cross-references Toyota 27060-0A040 and 27060-20090 for the same application.
What It Helps Fix
- Battery warning light caused by weak charging output
- Low system voltage during driving or idling
- Dim headlights and reduced electrical performance
- Charging system noise related to alternator wear
- Failure of the original alternator on a 1998-2003 Toyota Sienna
Installation Notes
Fits 1998-2003 Toyota Sienna, N/A. Confirm the vehicle uses a 100-amp alternator before installation and match the plug clock position, pulley style, and rotation direction to the original unit. Verify belt alignment and electrical connector fitment during replacement. Part number 13806 should be matched to the existing charging system specifications before installation.
Quality Assurance
BBB Industries remanufactured electrical components are processed to meet replacement-service requirements for charging system repair. Part number 13806 is built as a reman alternator for direct-fit service on listed Toyota Sienna applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2002 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2001 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 2000 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 1999 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
| 1998 | Toyota | Sienna | 3.0L | V6 | N/A | 100 Amps - suitable for alternators with this amperage output; REMAN ALTERNATOR |
