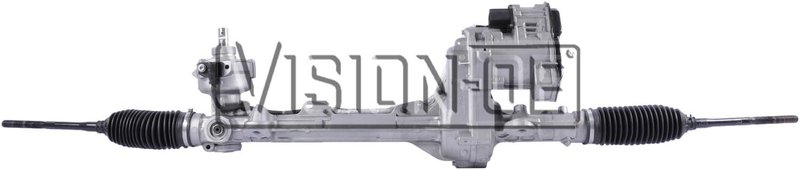

BBB Industries 201-0147E Rack and Pinion Assembly

Remanufactured Electric Rack and Pinion

BBB Industries Reman Rack and Pinion 201-0147E is a remanufactured electric rack and pinion assembly built for steering systems that use an integrated motor and control module. It includes inner tie rods and is identified by 2-pin and 3-pin connectors, making it a direct replacement option for select Ford steering applications.

This BBB Industries Reman Rack and Pinion line focuses on remanufactured steering components that restore precise steering response while matching OE-style electrical and mechanical specifications. Part number 201-0147E is a practical choice for Ford rack and pinion replacement work where the original unit uses electric assist.

Key Features

• Remanufactured electric rack and pinion assembly
• Motor included for electric steering assist
• Control module included
• Inner tie rods included
• Connector A: 2-pin
• Connector B: 3-pin
• Input shaft diameter: 0.734 in. (18.6436 mm)
• Input shaft length: 1.350 in. (34.290 mm)
• Rack length: 54.630 in. (1387.602 mm)
• Turns lock to lock: 2.63

Detailed Description

BBB Industries 201-0147E is a remanufactured rack and pinion assembly for electric steering systems. The unit is built with the motor and control module already integrated, along with inner tie rods, to match the original steering architecture used in select Ford models. With a 54.630-inch rack length and 2.63 turns lock to lock, this assembly is specified for applications that require the same steering geometry and electrical interface as the OE unit.

Use this part when replacing a worn or failing electric rack and pinion on Ford vehicles that call for OE numbers DG1Z-3504-GE, DG1Z-3504-ME, EG1Z-3504-B, EG1Z-3504-F, or EG1Z-3504-K. The 201-0147E part number is also useful for cataloging and cross-checking Ford rack and pinion replacement needs during steering repair.

This part cross-references OE numbers DG1Z-3504-GE and EG1Z-3504-B for the same application.

What It Helps Address

• Loose or inconsistent steering feel
• Excessive play in the steering rack
• Electric assist faults tied to the rack assembly
• Noise or binding from a worn rack and pinion unit
• Steering response issues on Ford rack and pinion applications

Installation Notes and Tips

Verify connector style, input shaft dimensions, and rack length before installation. Confirm the vehicle uses an electric rack and pinion with the same 2-pin and 3-pin connector configuration. After installation, perform the required steering angle, alignment, and electronic calibration procedures for the vehicle.

For Ford steering repair jobs, confirm OE interchange and application details against the original unit before removing the existing assembly. Part number 201-0147E should be matched to the vehicle’s steering system configuration, especially on Ford rack and pinion replacements with integrated electric assist.

Quality Assurance

BBB Industries remanufactures steering components to OE-style specifications for fit and function. This reman rack and pinion assembly is built as a complete electric steering unit with the motor and control module included, supporting a direct replacement approach for the specified Ford applications.
