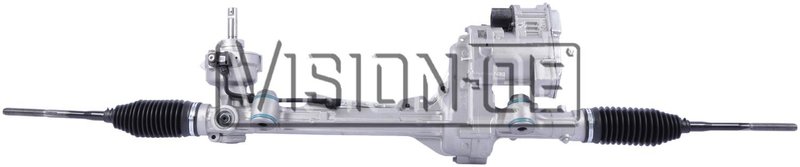

BBB Industries 201-0153E Rack and Pinion Assembly

Reman Rack and Pinion for Ford Explorer

BBB Industries 201-0153E is a remanufactured electric rack and pinion assembly for select 2011-2012 Ford Explorer models with power steering and Automated Parking System equipment. It includes the control module, motor, and inner tie rods for a direct replacement focused on restoring steering response and system communication.

Key Features

• Remanufactured electric rack and pinion assembly
• Includes control module and motor
• Inner tie rods included; outer tie rods not included
• 2-pin Connector A and 3-pin Connector B
• 2 mounting holes
• Rack length: 54.63 in. (1387.602 mm)
• Turns lock to lock: 2.75
• Input shaft diameter: 0.73 in. (18.542 mm)
• Input shaft length: 2.38 in. (60.452 mm)

Product Details

BBB Industries Reman Rack and Pinion line focuses on remanufactured steering assemblies built to match OE-style fit and function for vehicles that use electric steering assist. Part number 201-0153E is engineered for the 2011-2012 Ford Explorer and is listed with interchange references including BB5Z-3504-CE, BB5Z-3504-D, and related OE numbers for the same application. This Ford Explorer rack and pinion replacement is specified for power steering systems with Automated Parking System equipment and requires Programmable Module Installation (PMI) per the OE service manual or a complete As-Built program.

Common Steering Issues It Can Address

• Excessive steering play or delayed steering response
• Internal rack wear that causes uneven steering feel
• Electronic steering faults tied to the rack assembly
• Noise or binding from a worn steering gear
• Failure of the integrated motor or control module

Installation Notes and Tips

Verify connector pin counts, rack length, and input shaft dimensions before installation. This assembly is for 2011-2012 Ford Explorer applications with power steering and Automated Parking System equipment, and the OE programming procedure must be followed after installation. Because outer tie rods are not included, reuse or replace those components as needed during the repair. Part number 201-0153E should be matched to the vehicle’s steering configuration and OE service information before final assembly.

Quality Assurance

BBB Industries remanufactures steering components to support OE-style replacement needs in demanding steering systems. The 201-0153E rack and pinion is built as a remanufactured electric assembly with the motor, control module, and inner tie rods included for the specified Ford Explorer application.
