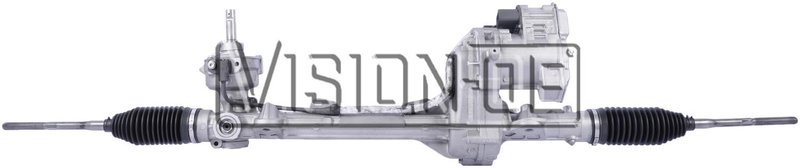

BBB Industries 201-0160E Rack and Pinion Assembly
| Brand | BBB Industries 201-0160E |
|---|---|
| Connector A Pin Count | 2 pin |
| Connector B Pin Count | 3 pin |
| Control Module Included | Yes |
| Hydraulic or Electric | Electric |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.73 |
| Input Shaft Diameter (mm) | 18.542 |
| Input Shaft Length (In) | 2.38 |
| Input Shaft Length (mm) | 60.452 |
| Motor Included | Yes |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Rack Length (In) | 54.63 |
| Rack Length (mm) | 1387.602 |
| Turns Lock To Lock | 2.63 |
| Product line | Reman Rack and Pinion |
| Fits | Ford · 1 vehicle |
Remanufactured assembly. A reman rack and pinion built for dependable steering replacement.
Electric assist. Integrated motor and control module are included for a complete setup.
Tie rods included. Inner tie rods come with the assembly for added convenience.
Cross-references FB5Z-3504-A, FB5Z-3504-E and FB5Z-3504-J for the same application. See all 10.
Reman Rack and Pinion for 2016 Ford Explorer
BBB Industries 201-0160E is a remanufactured electric rack and pinion assembly for the 2016 Ford Explorer with power steering. It includes the motor and control module, and it is built for vehicles that do not use the Automated Parking System. This 201-0160E rack and pinion is a direct-fit steering component for restoring steering response and control.
Key Features
- Remanufactured electric rack and pinion assembly
- Includes motor and control module
- Inner tie rods included; outer tie rods not included
- 2-pin connector A and 3-pin connector B
- Input shaft diameter: 0.73 in (18.542 mm)
- Input shaft length: 2.38 in (60.452 mm)
- Rack length: 54.63 in (1387.602 mm)
- Turns lock to lock: 2.63
- Two mounting holes
Product Details
BBB Industries Reman Rack and Pinion line focuses on remanufactured steering assemblies built to match OE-style fitment and electronic integration requirements. Part number 201-0160E is an electric rack and pinion assembly for the 2016 Ford Explorer, with the control module and motor included for a complete steering unit. The design supports programmable module installation (PMI) per the OE service manual, or an As-Built program, which is important for proper setup on this Ford Explorer application. This part cross-references Ford OE numbers FB5Z-3504-A and FB5Z-3504-E for the same application.
Common Issues This Part Addresses
- Excessive steering play or loose steering feel
- Uneven or inconsistent steering assist
- Internal rack wear causing noise or binding
- Electronic steering faults tied to the rack assembly
- Fluid-free electric steering replacement needs on the 2016 Ford Explorer
Installation Notes and Tips
Fits 2016 Ford Explorer, N/A, power steering, without Automated Parking System. Because this unit uses electronic steering components, follow the OE service manual for programmable module installation (PMI) or complete an As-Built program after installation. Verify connector count, mounting points, and steering system configuration before replacement. The 201-0160E is a reman rack and pinion assembly, so transfer and setup procedures should be handled according to factory service information.
Quality Assurance
BBB Industries remanufactures steering components to support OE-style replacement needs for vehicles such as the Ford Explorer. The 201-0160E is built as a remanufactured electric rack and pinion assembly with integrated motor and control module for this specific application.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Ford | Explorer | 2.3L | L4 | Power Steering; w/o Automated Parking System; Requires Programmable Module Installation (PMI) per OE service manual or complete an As-Built program; Reman Rack and Pinion |
