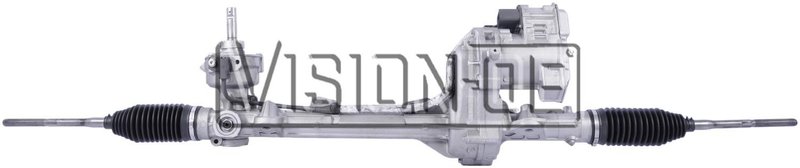

BBB Industries 201-0163E Rack and Pinion Assembly
| Brand | BBB Industries 201-0163E |
|---|---|
| Connector A Pin Count | 2 pin |
| Connector B Pin Count | 3 pin |
| Control Module Included | Yes |
| Hydraulic or Electric | Electric |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter (In) | 0.73 |
| Input Shaft Diameter (mm) | 18.542 |
| Input Shaft Length (In) | 2.38 |
| Input Shaft Length (mm) | 60.452 |
| Motor Included | Yes |
| New or Remanufactured | Remanufactured |
| Number of Mounting Holes | 2 |
| Outer Tie Rods Included | No |
| Rack Length (In) | 54.63 |
| Rack Length (mm) | 1387.602 |
| Turns Lock To Lock | 2.75 |
| Fits | —1 vehicle |
Remanufactured unit. Restores steering performance with a remanufactured rack and pinion assembly.
Electric design. Includes the motor and control module for a complete electric steering setup.
Inner tie rods included. Saves time by supplying the inner tie rods with the assembly.
Cross-references FB5Z-3504-D, FB5Z-3504-H and FB5Z-3504-M for the same application. See all 10.
Remanufactured Electric Rack and Pinion
BBB Industries 201-0163E is a remanufactured electric rack and pinion assembly built for steering systems that use an integrated motor and control module. It features inner tie rods included, a 2-pin connector A, a 3-pin connector B, and a 54.63-inch rack length for applications that require this specific OE-style configuration.
Key Features
- Remanufactured electric rack and pinion assembly
- Motor included with control module included
- Inner tie rods included; outer tie rods not included
- 2-pin connector A and 3-pin connector B
- Input shaft diameter: 0.73 in. (18.542 mm)
- Input shaft length: 2.38 in. (60.452 mm)
- Rack length: 54.63 in. (1387.602 mm)
- Turns lock to lock: 2.75
- Two mounting holes
- BBB Industries Reman Rack and Pinion line
Product Details
This BBB Industries reman rack and pinion assembly is part of the Reman Rack and Pinion product line, which focuses on steering gear replacements rebuilt to match the original electric steering architecture. Part number 201-0163E is a direct-fit style steering component for vehicles that use an electric rack with the listed connector and shaft specifications. This part cross-references Ford OE numbers FB5Z-3504-D and FB5Z-3504-H for the same application. For shoppers searching for a Ford rack and pinion assembly, electric steering rack replacement, or BBB Industries 201-0163E, the listed dimensions and connector counts are the key identifiers.
Common Steering Issues This Part Can Address
- Excessive steering play or loose steering feel
- Electric power steering faults tied to the rack assembly
- Internal rack wear that affects steering response
- Noise or binding during steering input
- Failure of the integrated motor or control module
Installation Notes and Tips
Verify connector pin counts, input shaft dimensions, rack length, and mounting-hole layout before installation. Because this assembly includes an integrated motor and control module, confirm electrical connector compatibility and perform any required steering angle or system relearn procedures after installation. Outer tie rods are not included, so reuse or replace them as needed based on vehicle condition. For vehicle-specific searches, confirm the exact Ford application before ordering this BBB Industries 201-0163E rack and pinion.
Quality Assurance
BBB Industries remanufactures steering components to OE-style specifications for fit and function in the intended application. Part number 201-0163E is built as a remanufactured electric rack and pinion assembly for vehicles requiring the listed connector, shaft, and rack dimensions.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2016 | Ford | Police Interceptor Utility | Power Steering; Requires Programmable Module Installation (PMI) per OE service manual or complete an As-Built program; Reman Rack and Pinion |
